10 Layout

10.1 Layout Guidelines

For VM, place a 0.1-µF bypass capacitor close to the device. Take care to minimize the loop formed by the bypass capacitor connection from VM to GND. Refer to the DRV8308EVM evaluation board for good layout practices.

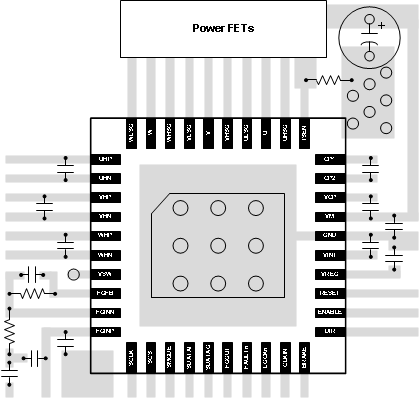

10.2 Layout Example

DRV8308 8308_layout.gif Figure 39. Layout Example
