7.3.2.1 Unidirectional Current Sense Operation

The DRV8334 internally generates a common mode voltage of 1/8 x VREF to obtain maximum resolution for current measurement. The current sense amplifier operates in a unidirectional mode and the SO pin outputs an analog voltage equal to the voltage across the SP and SN pins multiplied by the gain setting (GCSA).

Use Equation 1 to calculate the current through the shunt resistor.

Equation 1. GUID-20210427-CA0I-G83L-TV6P-GPBGVLNMHZWP-low.gif

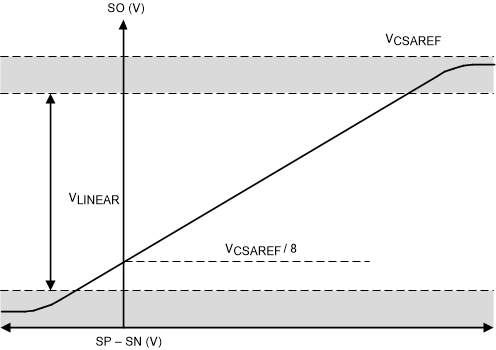

GUID-20201112-CA0I-S2XW-B0GM-MZL5ZWNKX0GQ-low.gifFigure 7-10 Unidirectional Current-Sense Output
GUID-20201112-CA0I-JNJD-Q2LH-ZQBQFCTBJPNC-low.gifFigure 7-11 Unidirectional Current-Sense Regions
