7.3.5.1 Mixed Decay

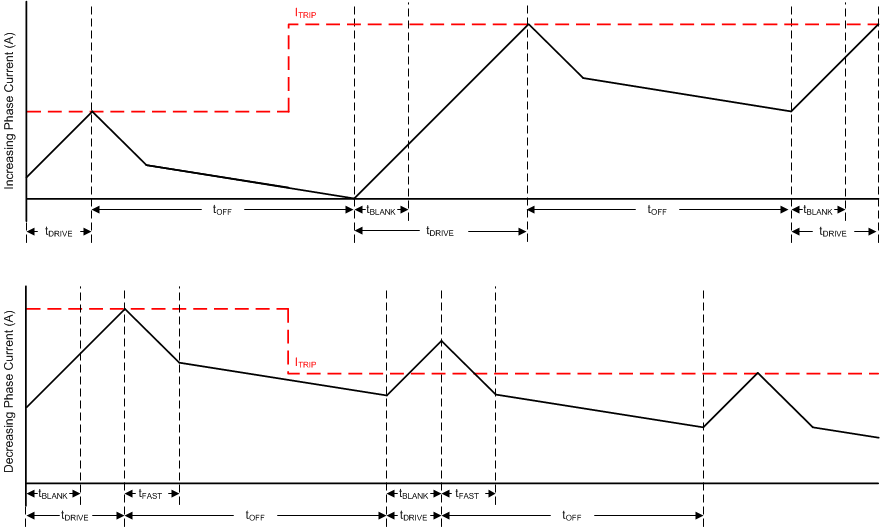

GUID-36533D02-183A-42C8-B4F8-FA51EE7B083D-low.gifFigure 7-7 Mixed Decay Mode

Mixed decay begins as fast decay for 30% of tOFF, followed by slow decay for the remainder of tOFF.
