7.3.2 PWM Motor Drivers

The DRV8436 device has drivers for two full H-bridges to drive the two windings of a bipolar stepper motor. Figure 7-3 shows a block diagram of the circuitry.

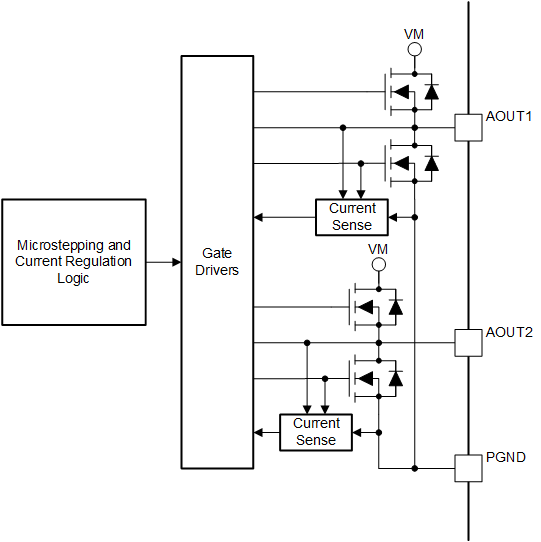

GUID-D29E78D2-BA9C-43BB-91B4-4C1BFA46610A-low.gifFigure 7-3 PWM Motor Driver Block Diagram
