8.2 Typical Application

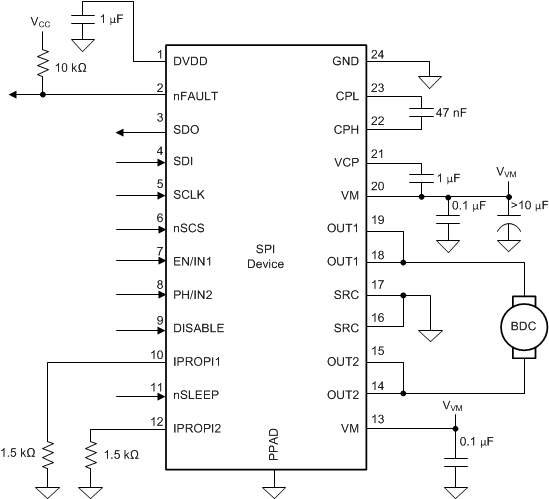

Figure 8-1 shows the typical application schematic for the SPI version of the device.

GUID-8D14D13C-2297-4573-B43E-25AB15912C3F-low.gifFigure 8-1 Typical Application Schematic
