8.2.2.3 Application Curves

DRV8874 HALF MODE.png
A.
Chan. 1 = OUT1 Chan. 2 = OUT2 Chan. 3 = EN/IN1
Chan. 4 = PH/IN2

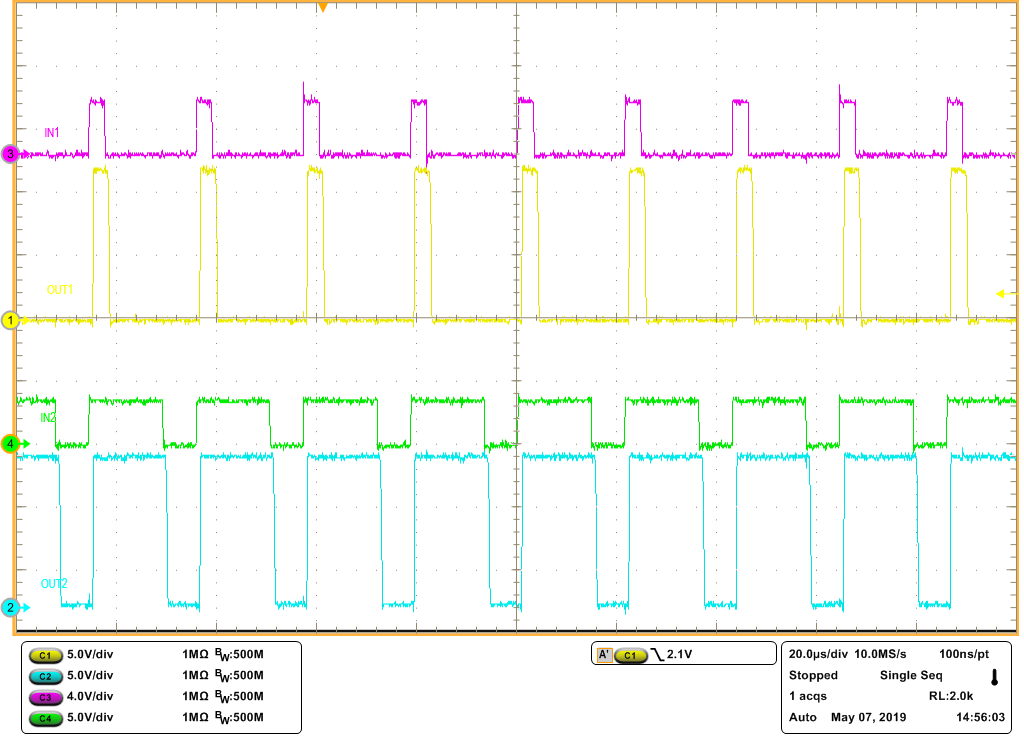

Figure 34. Independent Half-Bridge PWM Operation
DRV8874 HALF MODE2.png
A.
Chan. 1 = OUT1 Chan. 2 = OUT2 Chan. 3 = EN/IN1
Chan. 4 = PH/IN2
Figure 35. Independent Half-Bridge PWM Operation
