8.2.2.3 Application Curves

DRV8876 HALF MODE.png
A.
Chan. 1 = OUT1 Chan. 2 = OUT2 Chan. 3 = EN/IN1
Chan. 4 = PH/IN2

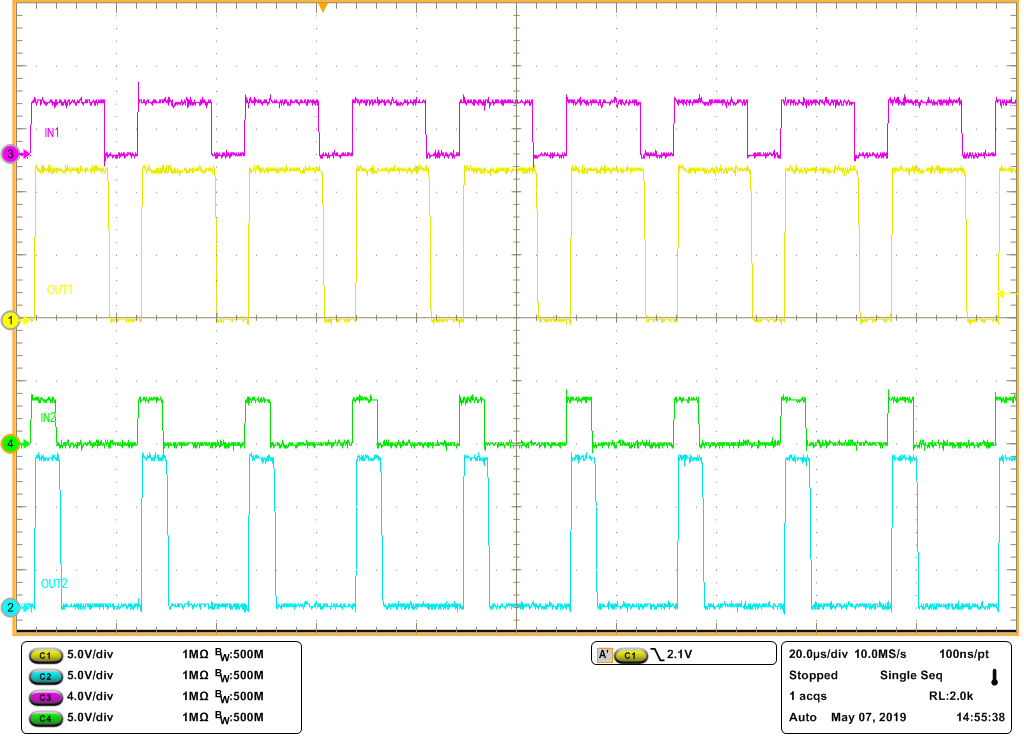

Figure 38. Independent Half-Bridge PWM Operation
DRV8876 HALF MODE2.png
A.
Chan. 1 = OUT1 Chan. 2 = OUT2 Chan. 3 = EN/IN1
Chan. 4 = PH/IN2

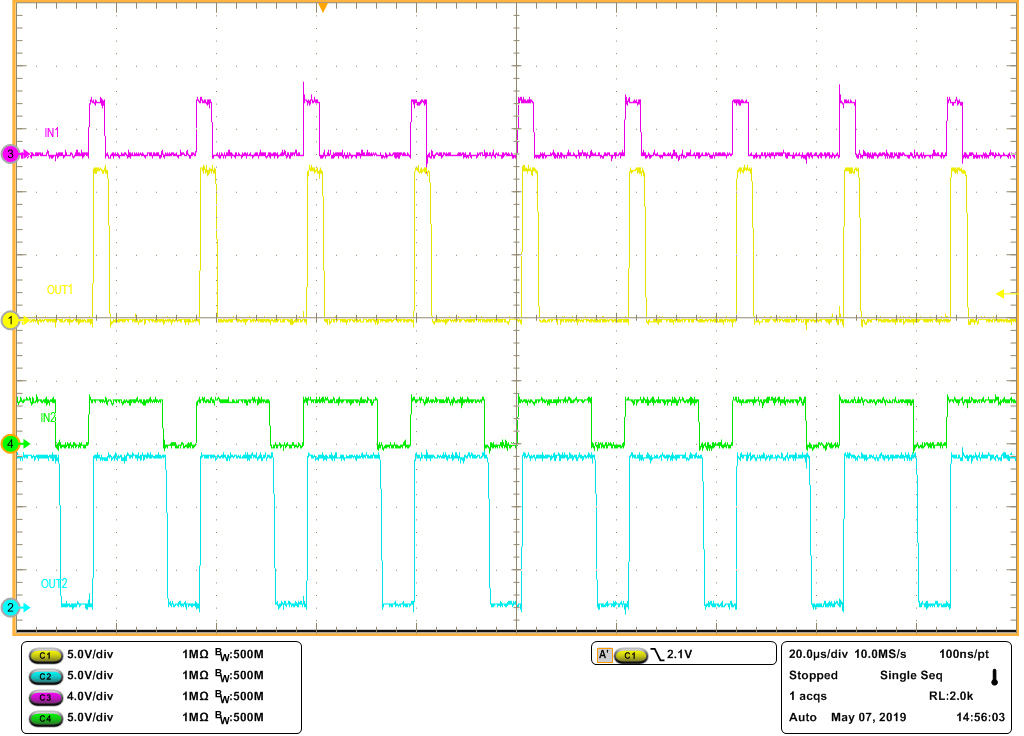

Figure 39. Independent Half-Bridge PWM Operation
