7.3.2 PWM Motor Drivers

The device has drivers for two full H-bridges to drive the two windings of a bipolar stepper motor. Figure 7-2 shows a block diagram of the circuitry.

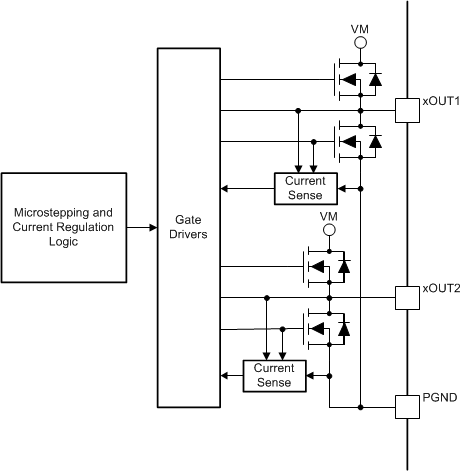

GUID-FB7D8850-39C0-4269-A51E-F78326578F51-low.gif Figure 7-2 PWM Motor Driver Block Diagram
