11.2 Layout Example

The following example layout demonstrates how all signals can be escaped from the BGA array using stripline routing on a generic 28-layer stackup. This example layout assumes the following:

  • Trace width: 0.127 mm (5 mil)
  • Trace edge-to-edge spacing: 0.152 mm (6 mil)
  • VIA finished hole size (diameter): 0.203 mm (8 mil)
  • VIA drilled hole size: 0.254 mm (10 mil)
  • VIA-to-VIA spacing: 1.0 mm (39 mil), to enhance PCB manufacturability
  • No VIA-in-pad used

Note that many other escape routing options exist using different trace width and spacing combinations. The optimum trace width and spacing will depend on the PCB material, PCB routing density, and other factors.

DS250DF810 top_left_top_layer_SNLS495.pngFigure 20. Top Layer

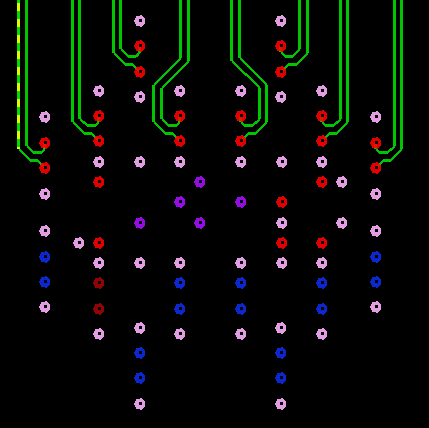

DS250DF810 bottom_left_internal_single_layer2_SNLS495.pngFigure 22. Internal Signal Layer 2
DS250DF810 top_right_internal_single_layer1_SNLS495.pngFigure 21. Internal Signal layer 1

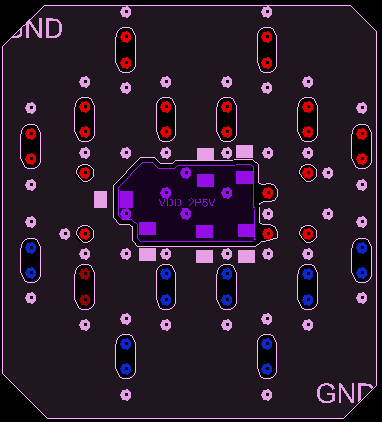

DS250DF810 bottom_layer_bottom_right_SNLS495.pngFigure 23. Bottom Layer
