9.2 Typical Application

The DS250DF810 is typically used in the following main application scenarios:

  1. Backplane and mid-plane reach extension
  2. Front-port jitter cleaning / retiming for optical applications

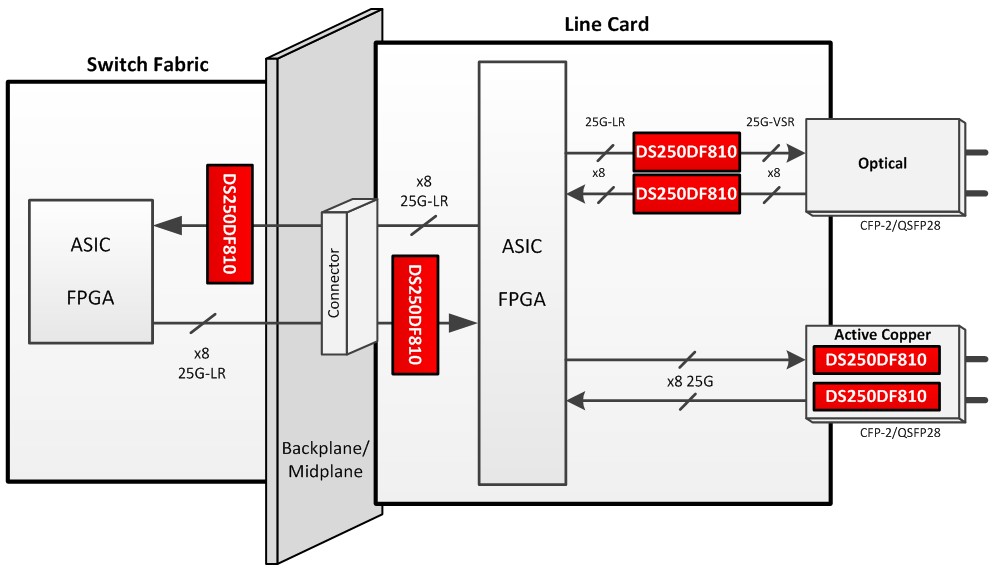

DS250DF810 typical_uses_SNLS495.pngFigure 15. Typical Uses for the DS250DF810 in a System
