12.2 Layout Example

Stencil parameters such as aperture area ratio and the fabrication process have a significant impact on paste deposition. Inspection of the stencil prior to placement of the WQFN package is highly recommended to improve board assembly yields. If the via and aperture openings are not carefully monitored, the solder may flow unevenly through the DAP. Stencil parameters for aperture opening and via locations are shown below:

DS90UB914A-Q1 LLP_stencil_nopullback_explanation_diagram_snls302.pngFigure 41. No Pullback WQFN, Single Row Reference Diagram

Table 13. No Pullback WQFN Stencil Aperture Summary for DS90UB914A-Q1

DEVICE PIN COUNT MKT DWG PCB I/O PAD SIZE (mm) PCB PITCH (mm) PCB DAP SIZE(mm) STENCIL I/O APERTURE (mm) STENCIL DAP APERTURE (mm) NUMBER OF DAP APERTURE OPENINGS GAP BETWEEN DAP APERTURE (Dim A mm)
DS90UB914A-Q1 48 RHS 0.25 x 0.6 0.5 5.1 x 5.1 0.25 x 0.7 1.1 x 1.1 16 0.2

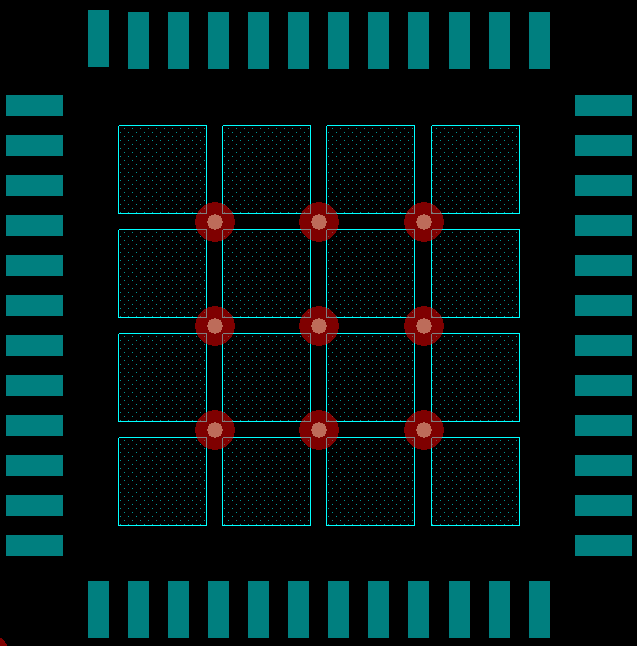

DS90UB914A-Q1 sample_layout_DAP_snls302.pngFigure 42. 48-Pin WQFN Stencil Example of Via and Opening Placement

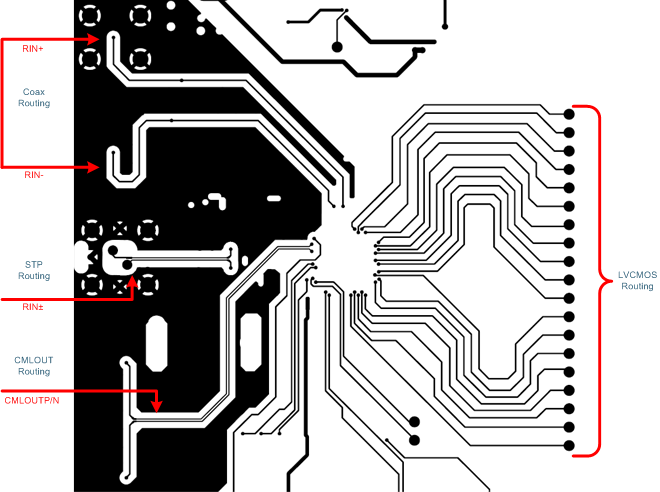

DS90UB914A-Q1 layout_example_914a_snls499.gifFigure 43. DS90UB914A-Q1 Deserializer Example Layout

The following PCB layout examples are derived from the layout design of the DS90UB914A-Q1 Evaluation Module (see DS90UB913A-CXEVM and DS90UB914A-CXEVM User’s Guide (SNLU135)). These graphics and additional layout description are used to demonstrate both proper routing and proper solder techniques when designing in this Deserializer.
