6.4.1 Clocking Modes

The DS90UB935-Q1 supports several clocking schemes, which are selected through the MODE pin. In the DS90UB935-Q1, the forward channel operates at a higher bandwidth than the requirement set by the video data transported, and the forward channel data rate is set by a reference clock. The clocking mode determines what the device uses as the reference clock, and the most common configuration is synchronous mode in which no local reference oscillator is required. See Table 6-8 for more information.

The default mode of the DS90UB935-Q1 is set by the application of a bias on the MODE pin during power up. More information on setting the operation modes can be found in Section 6.4.2.

Table 6-8 Clocking Modes
MODE DIVIDE REFERENCE SOURCE REF FREQUENCY (f) (MHz) FC DATA RATE CSI BANDWIDTH ≤ CLK_OUT (3)
Synchronous N/A Back Channel(1) 23 - 26 f × 160 2.528 Gbps f × 160 / HS_CLK_DIV × (M/N)
Synchronous (Half-rate) N/A Back Channel(1) 11.5 - 13 f × 160 1.264Gbps f × 160 / HS_CLK_DIV × (M/N)
Non-Synchronous external clock CLKIN_DIV = b000 External Clock(2) 25 - 52 f × 80 Lesser of f × 64 or 2.528 Gbps f × 80 / HS_CLK_DIV × (M/N)
CLKIN_DIV = b001 External clock (2) 50 - 104 f × 40 Lesser of f × 32 or 2.528 Gbps f × 40 / HS_CLK_DIV × (M/N)
Non-Synchronous Internal Clock OSCCLK_SEL = 1 Internal Clock 48.4 - 51 f × 80 2.528 Gbps N/A
Non-Synchronous Internal Clock (Half-rate) OSCCLK_SEL = 0 Internal Clock 24.2 - 25.5 f × 80 1.264Gbps N/A
DVP External Clock
Deserializer Mode: RAW10		 N/A External clock 25 - 66.5 f × 28 f × 20 f × 28 / HS_CLK_DIV × (M/N)
DVP External Clock
Deserializer Mode: RAW12 HF		 N/A External clock 25 - 70 f × 28 f × 18 f × 28 / HS_CLK_DIV × (M/N)
(1) The back channel is recovered from the FPD-Link III bidirectional control channel. A local reference clock source is not required. Refer to the deserializer data sheet for the back channel frequency settings.
(2) A local reference clock source is required. Provide a clock source to the DS90UB935-Q1's CLKIN pin.
(3) HS_CLK_DIV typically must be set to either 16, 8, or 4 (default).

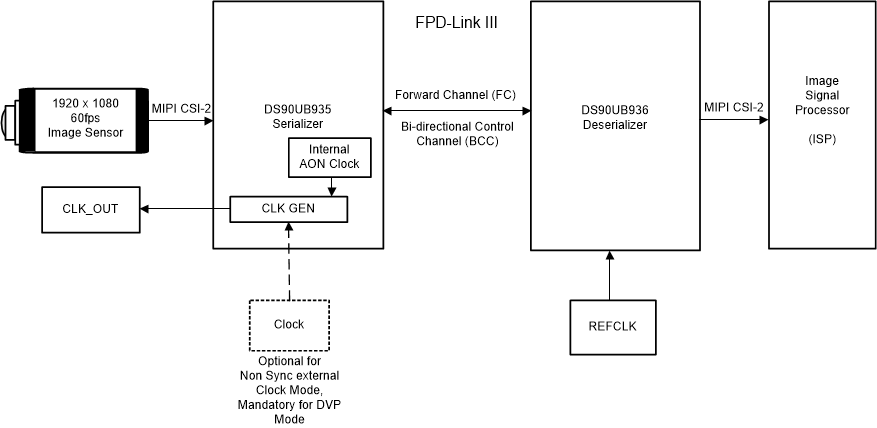

GUID-1FC13D57-C56C-4745-9E52-BAE64BF79FBC-low.gifFigure 6-6 Clocking System Diagram
