7.2.2.3 Application Curves

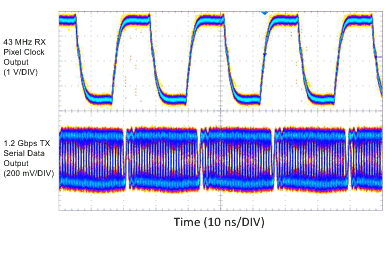

DS90UR124-Q1 DS90UR241-Q1 DS90UR241 Serial Stream and DS90UR124 43MHz PCLK OutputFigure 7-6 DS90UR241 Serial Stream and DS90UR124 43MHz PCLK Output
DS90UR124-Q1 DS90UR241-Q1 DS90UR124 PCLK Output at 43MHz (Enlarged)Figure 7-7 DS90UR124 PCLK Output at 43MHz (Enlarged)
