6.7 Typical Characteristics

ESD351 D001_Positive_TLP.gifFigure 1. TLP I-V Curve, I/O Pin to GND (tp = 100 ns)
ESD351 D003_Positive_IEC.gifFigure 3. 8-kV IEC 61000-4-2 Clamping Voltage, I/O pin to GND
ESD351 D005_Surge.gifFigure 5. Surge Curve (IEC 61000-4-5, tp = 8/20 µs), I/O Pin to GND
ESD351 D007_Leakage.gifFigure 7. Leakage Current at 3.6 V Bias Voltage Across Temperature, I/O Pin to GND
ESD351 D009_InsertionLoss.gifFigure 9. Insertion Loss Vs. Frequency

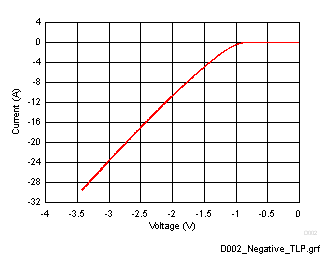

ESD351 D002_Negative_TLP.gifFigure 2. TLP I/V Curve, GND to I/O Pin (tp = 100 ns)
ESD351 D004_Negative_IEC.gifFigure 4. 8-kV IEC 61000-4-2 Clamping Voltage, GND to I/O Pin
ESD351 D006_DC.gifFigure 6. DC IV-Curve, I/O Pin to GND
ESD351 D008_Cap.gifFigure 8. Capacitance Vs. Bias Voltage at Different Temperatures (°C)
