8.3.4.1 DRDY

When DRDY_ENABLE is enabled and a humidity and/or temperature conversion is complete, the DRDY_STATUS bit asserts to 1. To enable the DRDY/INT pin of HDC2080, the DRDY/INT_EN bit (0x0E bit[2]) must be set to 1 and the INT_MOD bit should be set to 0. If these bits are not configured, the pin will be left in high impedance. The INT_POL bit of this register defines the interrupt polarity of the DRDY/INT pin. Figure 8-1 and Figure 8-2 display the output behavior of the DRDY/INT pin for both interrupt polarity cases: INT_POL= 0 and INT_POL= 1.

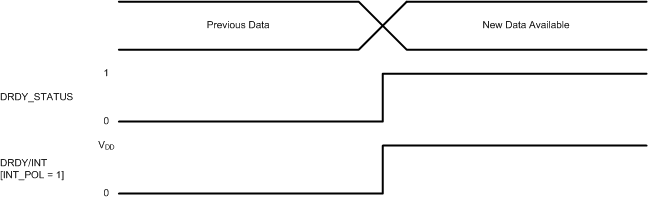

GUID-95D5D96A-3245-47AE-9100-4984E2A099C8-low.gifFigure 8-1 Data Ready Interrupt - Active High (INT_POL = 1)
GUID-E8B5B0A7-C793-42A0-95F8-873FC6688685-low.gifFigure 8-2 Data Ready Interrupt - Active Low (INT_POL = 0)
