8.2 Functional Block Diagrams

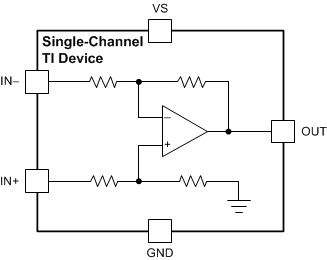

GUID-4E223782-E36C-4A8F-A11C-04D3E8720A07-low.gifFigure 8-1 INA180 Functional Block Diagram
GUID-6403B65B-B742-4871-B2D8-BD94B619B4CB-low.gifFigure 8-2 INA2180 Functional Block Diagram
GUID-C349CFA3-8C9C-4D68-8C05-30532FF8A7ED-low.gifFigure 8-3 INA4180 Functional Block Diagram
