2 Applications

  • Electronic Power Steering
  • Stability and Traction Control
  • Motor and Actuator Control
  • Solenoid and Valve Control

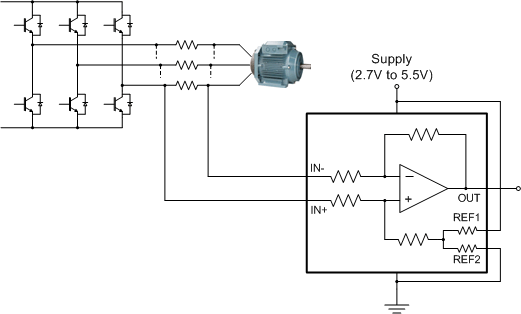

GUID-0B8D3682-5637-4135-8D42-218906CD9819-low.gif Typical Application
