7.6 Typical Characteristics

at T_A = 25°C, V_S = 5 V, V_IN+ = 12 V, and V_REF = V_S / 2 (unless otherwise noted)

All gains

Figure 7-1 Input Offset Current Production Distribution

All gains

Figure 7-3 Common-Mode Rejection Production Distribution

Figure 7-5 Power-Supply Rejection Ratio vs Temperature

Figure 7-7 Gain Error Production Distribution (INA254A2)

Figure 7-9 System Gain Error vs Temperature

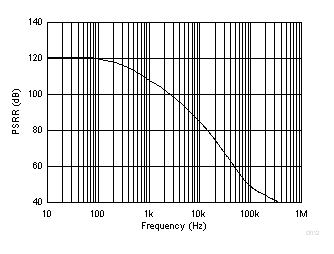

Figure 7-11 Power-Supply Rejection Ratio vs Frequency

Figure 7-13 Reference Divider Accuracy vs Temperature

Figure 7-15 Output Voltage Swing High vs Temperature

Figure 7-17 Package Resistance vs Temperature


	V_S = 0 V

Figure 7-19 Input Bias Current vs Common-Mode Voltage

Figure 7-21 Quiescent Current vs Temperature

Figure 7-23 INA254A1 Input-Referred Current Noise vs Frequency

Figure 7-25 INA254A3 Input-Referred Current Noise vs Frequency


V_REF1 = V_REF2 = 0 V, 10-mV_PP input step

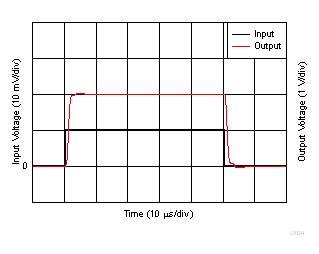

Figure 7-27 Amplifier Step Response

Figure 7-29 Start-Up Response

Falling Edge

Figure 7-31 Common-Mode Voltage Transient Response

Figure 7-2 Input Offset Current vs Temperature

Figure 7-4 Common-Mode Rejection Ratio vs Temperature

Figure 7-6 Gain Error Production Distribution (INA254A1)

Figure 7-8 Gain Error Production Distribution (INA254A3)

V_CM = 0 V, V_DIFF = 10-mV_PP sine

Figure 7-10 Amplifier Gain Error vs Frequency

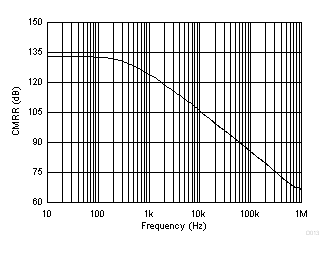

Figure 7-12 Common-Mode Rejection Ratio vs Frequency


V_S = 5 V

Figure 7-14 Output Voltage Swing vs Output Current

Figure 7-16 Output Voltage Swing Low vs Temperature


V_S = 5 V

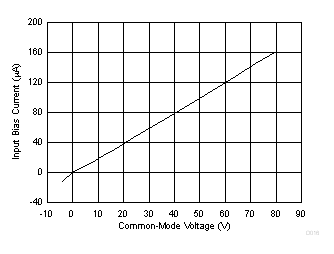

Figure 7-18 Input Bias Current vs Common-Mode Voltage

Figure 7-20 Input Bias Current vs Temperature

Figure 7-22 Quiescent Current vs Common-Mode Voltage

Figure 7-24 INA254A2 Input-Referred Current Noise vs Frequency

Figure 7-26 0.1-Hz to 10-Hz Current Noise (Referred-to-Input)

V_REF1 = V_REF2 = 0 V

Figure 7-28 Common-Mode Transient Response

Rising Edge

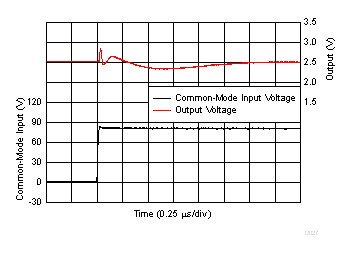

Figure 7-30 Common-Mode Voltage Transient Response
