7.7 Typical Characteristics

at TA = 25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, and G = 1 (unless otherwise noted)
INA821 D001_INA821.gif
N = 2667 Mean = 3.1 µV Std. Dev. = 8.1 µV
Figure 1. Typical Distribution of
Input Stage Offset Voltage
INA821 D003_INA821.gif
N = 2667 Mean = 7.7 µV Std. Dev. = 50.7 µV
Figure 3. Typical Distribution of
Output Stage Offset Voltage
INA821 D005_INA821.gif
81 units
Figure 5. Input Stage Offset Voltage vs Temperature
INA821 D007_INA821.gif
N = 292 Mean = 45 pA Std. Dev. = 62 pA
TA = 25°C
Figure 7. Typical Distribution of Input Bias Current,
TA = 25°C
INA821 D050_INA821.gif
N = 94 Mean = –38.82 pA Std. Dev. = 47.24 pA
Figure 9. Typical Distribution of Input Offset Current
INA821 D010_INA821.gif
N = 294 G = 1
Figure 11. Input Offset Current vs Temperature
INA821 D012_INA821.gif
N = 294 Mean = 0.51 µV/V Std. Dev. = 0.42 µV/V
G = 10
Figure 13. Typical CMRR Distribution, G = 10
INA821 D014_INA821.gif
1.
N = 5 G = 10
Figure 15. CMRR vs Temperature, G = 10
INA821 D016_INA821.gif
Figure 17. CMRR vs Frequency (RTI)
INA821 D018_INA821.gif
Figure 19. Positive PSRR vs Frequency (RTI)
INA821 D020_INA821.gif
Figure 21. Gain vs Frequency
INA821 D022_INA821.gif
Figure 23. Current Noise Spectral Density vs Frequency (RTI)
INA821 D024_INA821.gif
G = 1000
Figure 25. 0.1-Hz to 10-Hz RTI Voltage Noise, G = 1000
INA821 D026_INA821.gif
N = 5412 Mean = 30 ppm Std. Dev. = 55 ppm
G = 1
Figure 27. Typical Distribution of Gain Error, G = 1
INA821 D028_INA821.gif
VS = ±15 V
Figure 29. Input Bias Current vs Common-Mode Voltage
INA821 D030_INA821.gif
Average of 294 units G = 10
Figure 31. Gain Error vs Temperature, G = 10
INA821 D032_INA821.gif
G = 1
Figure 33. Gain Nonlinearity, G = 1
INA821 D034_INA821.gif

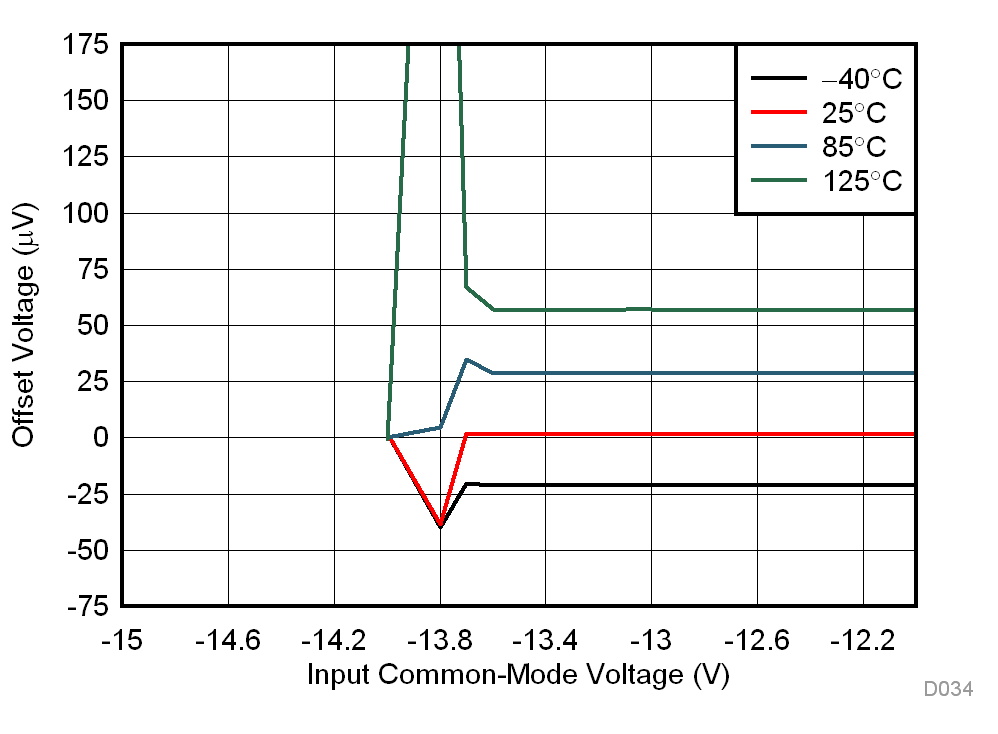

Figure 35. Offset Voltage vs Negative Common-Mode Voltage
INA821 D036_INA821.gif
Figure 37. Positive Output Voltage Swing vs Output Current
INA821 D038_INA821.gif
Figure 39. Short-Circuit Current vs Temperature
INA821 D040_INA821.gif
500-kHz measurement bandwidth
1-VRMS output voltage 100-kΩ load
Figure 41. THD+N vs Frequency
INA821 D042_INA821.gif
G = 1 RL = 10 kΩ CL = 100 pF
Figure 43. Small-Signal Response
INA821 D044_INA821.gif
G = 100 RL = 10 kΩ CL = 100 pF
Figure 45. Small-Signal Response
INA821 D046_INA821.gif
Figure 47. Large-Signal Step Response
INA821 D048_INA821.gif
Figure 49. Differential-Mode EMI Rejection Ratio
INA821 D054_SBOS959.gif
VS = 5 V G = 1
Figure 51. Input Common-Mode Voltage vs Output Voltage
INA821 D055_SBOS959.gif
VS = ±5 V VREF = 0 V
Figure 53. Input Common-Mode Voltage vs Output Voltage
INA821 D002_INA821.gif
N = 81 Mean = -0.03 µV/°C Std. Dev. = 0.09 µV/°C
Figure 2. Typical Distribution of
Input Stage Offset Voltage Drift
INA821 D004_INA821.gif
N = 81 Mean = –1.09 µV/°C Std. Dev. = 0.94 µV/°C
Figure 4. Typical Distribution of
Output Stage Offset Voltage Drift
INA821 D006_INA821.gif
81 units
Figure 6. Output Stage Offset Voltage vs Temperature
INA821 D008_INA821.gif
N = 292 Mean = 34 pA Std. Dev. = 52 pA
TA = 90°C
Figure 8. Typical Distribution of Input Bias Current,
TA = 90°C
INA821 D009_INA821.gif
N = 294 G = 1
Figure 10. Input Bias Current vs Temperature
INA821 D011_INA821.gif
N = 294 Mean = 4.87 µV/V Std. Dev. = 4.14 µV/V
G = 1
Figure 12. Typical CMRR Distribution, G = 1
INA821 D013_INA821.gif
N = 5 G = 1
Figure 14. CMRR vs Temperature, G = 1
INA821 D015_INA821.gif
VS = ±18 V
Figure 16. Input Current vs Input Overvoltage
INA821 D017_INA821.gif
Figure 18. CMRR vs Frequency
(RTI, 1-kΩ source imbalance)
INA821 D019_INA821.gif
Figure 20. Negative PSRR vs Frequency (RTI)
INA821 D021_INA821.gif
Figure 22. Voltage Noise Spectral Density vs Frequency (RTI)
INA821 D023_INA821.gif
G = 1
Figure 24. 0.1-Hz to 10-Hz RTI Voltage Noise, G = 1
INA821 D025_INA821.gif
G = 1
Figure 26. 0.1-Hz to 10-Hz RTI Current Noise
INA821 D027_INA821.gif
N = 293 Mean = 152 ppm Std. Dev. = 291 ppm
G = 10
Figure 28. Typical Distribution of Gain Error, G = 10
INA821 D029_INA821.gif
Average of 294 units G = 1
Figure 30. Gain Error vs Temperature, G = 1
INA821 D031_INA821.gif
Figure 32. Supply Current vs Temperature
INA821 D033_INA821.gif
G = 10
Figure 34. Gain Nonlinearity, G = 10
INA821 D035_INA821.gif
Figure 36. Offset Voltage vs Positive Common-Mode Voltage
INA821 D037_INA821.gif
Figure 38. Negative Output Voltage Swing vs Output Current
INA821 D039_INA821.gif
Figure 40. Large-Signal Frequency Response
INA821 D041_INA821.gif
Figure 42. Overshoot vs Capacitive Loads
INA821 D043_INA821.gif
G = 10 RL = 10 kΩ CL = 100 pF
Figure 44. Small-Signal Response
INA821 D045_INA821.gif
G = 1000 RL = 10 kΩ CL = 100 pF
Figure 46. Small-Signal Response
INA821 D047_INA821.gif
Figure 48. Closed-Loop Output Impedance
INA821 D049_INA821.gif
Figure 50. Common-Mode EMI Rejection Ratio
INA821 D056_SBOS959.gif
VS = 5 V G = 100
Figure 52. Input Common-Mode Voltage vs Output Voltage
INA821 D052_SBOS959.gif
VS = ±15 V VREF = 0 V
Figure 54. Input Common-Mode Voltage vs Output Voltage
