7 Parameter Measurement Information

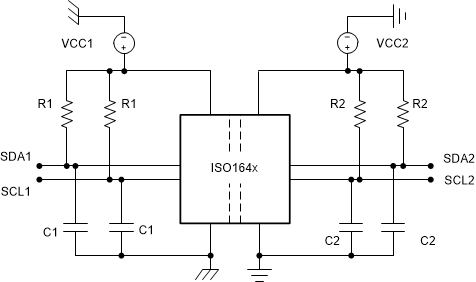

GUID-7DE7ACE5-7332-431A-88EB-04A866504E64-low.gifFigure 7-1 Test Diagram
GUID-738E7F93-F2C9-4C06-94A4-5F63416F5B40-low.gifFigure 7-2 tLoop1 Setup and Timing Diagram
GUID-6C74E229-F6DD-4B4C-B76A-F4FDD6F5F96A-low.gifFigure 7-3 Common-Mode Transient Immunity Test Circuit

The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the input, 50 Ω resistor is required to terminate Input Generator signal. It is not needed in actual application.
CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.

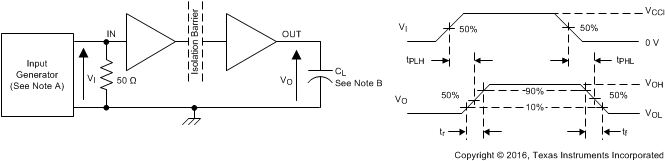

Figure 7-4 GPIO Channel Switching Characteristics Test Circuit and Voltage Waveforms
CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Power Supply Ramp Rate = 10 mV/ns
Figure 7-5 GPIO Channel Default Output Delay Time Test Circuit and Voltage Waveforms

Figure 7-4 tUVLO Test Circuit and Timing Diagrams
