6.13
Typical Characteristics
T
A
= 25°C
Figure 6-5
Side 1: Output Low Voltage vs Free-Air Temperature
VCC1 = 3.3 V
Figure 6-7

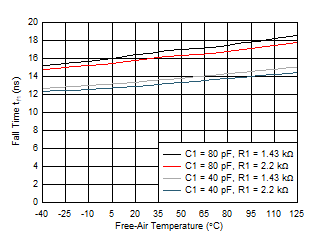

Side 1: Output Fall Time vs Free-Air Temperature
VCC2 = 3.3 V
C2 = 400 pF
Figure 6-9

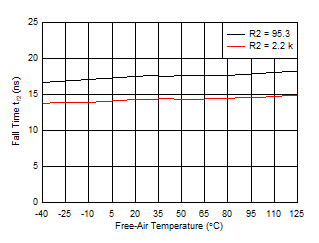

Side 2: Output Fall Time vs Free-Air Temperature
C1 = 80 pF
C2 = 400 pF
Figure 6-11

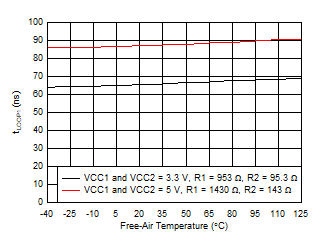

t
LOOP1
vs Free-Air Temperature
Figure 6-13
t
PLH1-2

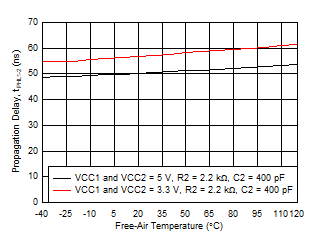

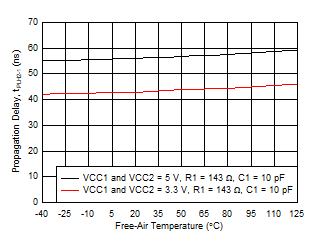

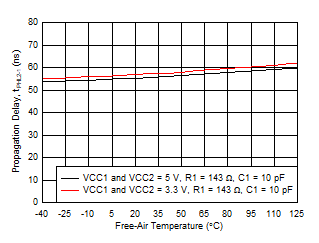

Propagation Delay vs Free-Air Temperature
Figure 6-15
t
PHL1-2
Propagation Delay vs Free-Air Temperature
Figure 6-17
t
PLH2-1
Propagation Delay vs Free-Air Temperature
Figure 6-19
t
PHL2-1
Propagation Delay vs Free-Air Temperature
Figure 6-21
ISO1642: ICC vs GPIO Speed at 3.3V
Figure 6-23

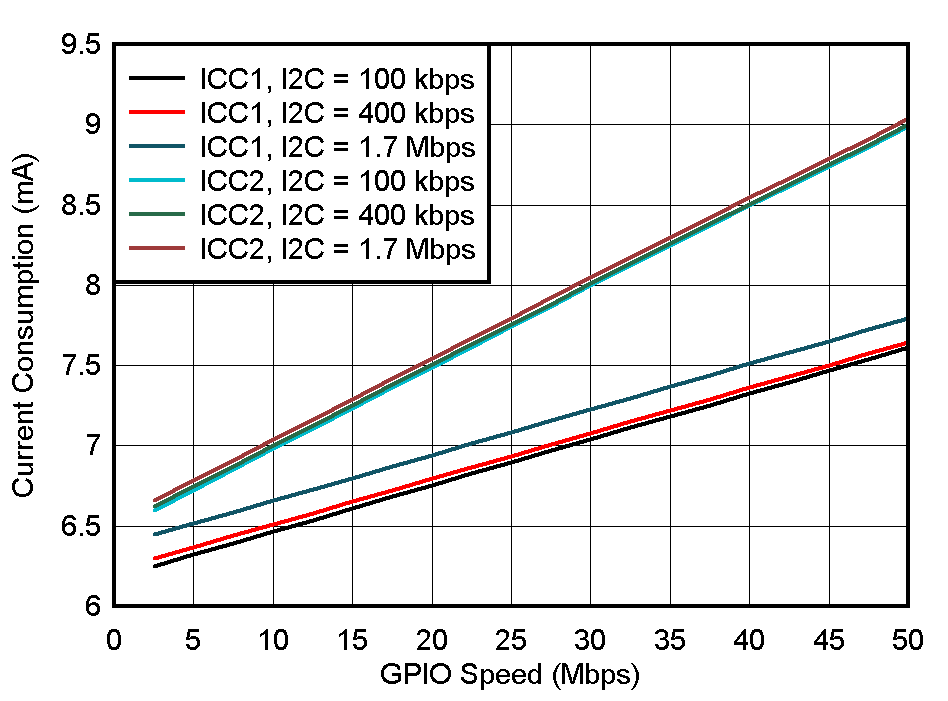

ISO1643: ICC vs GPIO Speed at 3.3V
Figure 6-25

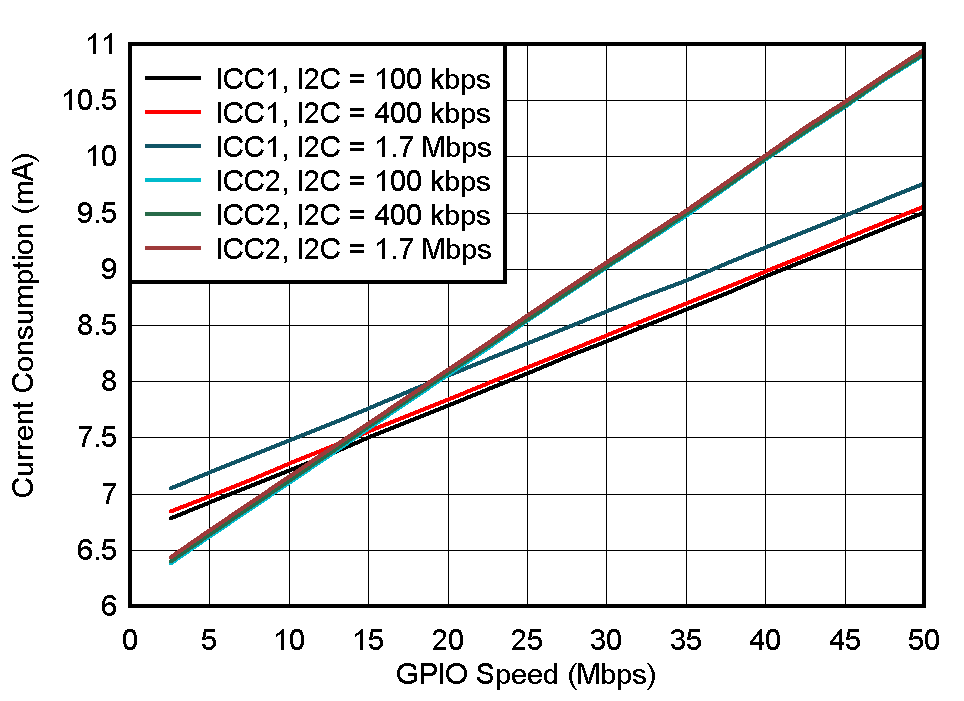

ISO1644: ICC vs GPIO Speed at 3.3V
VCC1 = 5 V
Figure 6-6
Side 1: Output Fall Time vs Free-Air Temperature
VCC2 = 5 V
C2 = 400 pF
Figure 6-8

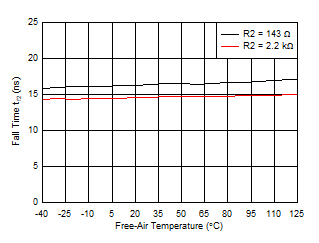

Side 2: Output Fall Time vs Free-Air Temperature
VCC2 = 2.5 V
C2 = 400 pF
Figure 6-10
Side 2: Output Fall Time vs Free-Air Temperature
C1 = 80 pF
C2 = 400 pF

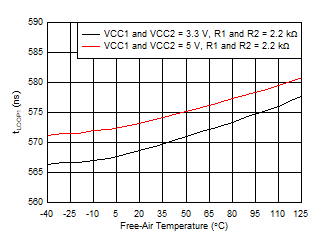

Figure 6-12
t
LOOP1
vs Free-Air Temperature
Figure 6-14
t
PLH1-2
Propagation Delay vs Free-Air Temperature
Figure 6-16
t
PHL1-2
Propagation Delay vs Free-Air Temperature
Figure 6-18
t
PLH2-1
Propagation Delay vs Free-Air Temperature
Figure 6-20
t
PHL2-1
Propagation Delay vs Free-Air Temperature
Figure 6-22
ISO1642: ICC vs GPIO Speed at 5V
Figure 6-24

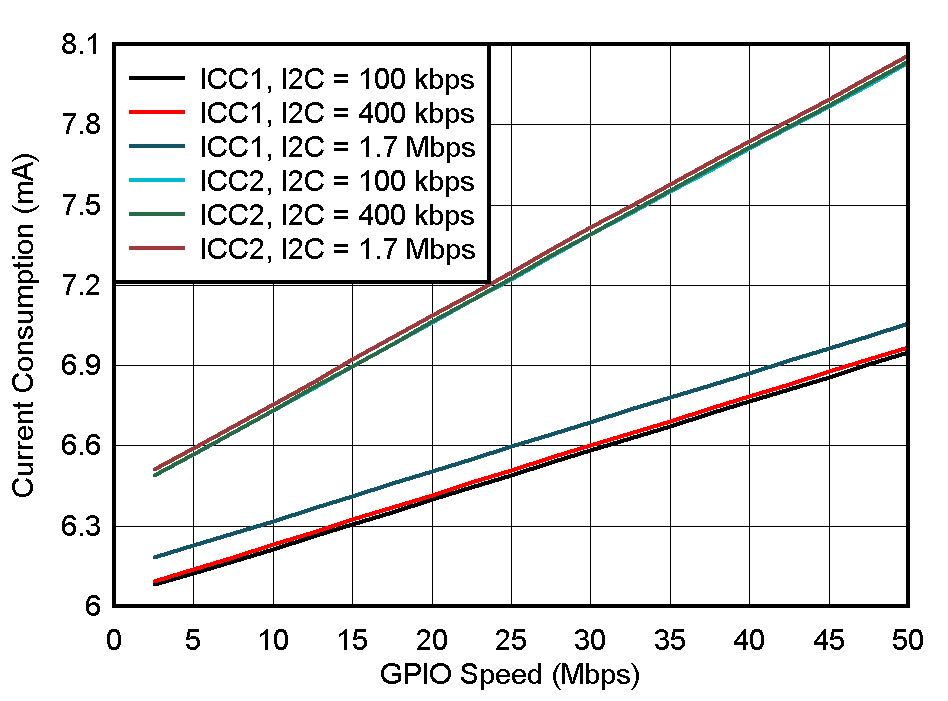

ISO1643: ICC vs GPIO Speed at 5V
Figure 6-26
ISO1644: ICC vs GPIO Speed at 5V
