SLASEZ0A
December 2019 – June 2021
ISO6731-Q1
PRODUCTION DATA
1
Features
2
Applications
3
Description
4
Revision History
5
Pin Configuration and Functions
6
Specifications
6.1
Absolute Maximum Ratings
6.2
ESD Ratings
6.3
Recommended Operating Conditions
6.4
Thermal Information
6.5
Power Ratings
6.6
Insulation Specifications
6.7
Safety-Related Certifications
6.8
Safety Limiting Values
6.9
Electrical Characteristics—5-V Supply
6.10
Supply Current Characteristics—5-V Supply
6.11
Electrical Characteristics—3.3-V Supply
6.12
Supply Current Characteristics—3.3-V Supply
6.13
Electrical Characteristics—2.5-V Supply
6.14
Supply Current Characteristics—2.5-V Supply
6.15
Electrical Characteristics—1.8-V Supply
6.16
Supply Current Characteristics—1.8-V Supply
6.17
Switching Characteristics—5-V Supply
6.18
Switching Characteristics—3.3-V Supply
6.19
Switching Characteristics—2.5-V Supply
6.20
Switching Characteristics—1.8-V Supply
6.21
Insulation Characteristics Curves
6.22
Typical Characteristics
7
Parameter Measurement Information
8
Detailed Description
8.1
Overview
8.2
Functional Block Diagram
8.3
Feature Description
8.3.1
Electromagnetic Compatibility (EMC) Considerations
8.4
Device Functional Modes
8.4.1
Device I/O Schematics
9
Application and Implementation
9.1
Application Information
9.2
Typical Application
9.2.1
Design Requirements
9.2.2
Detailed Design Procedure
9.2.3
Application Curve
9.2.3.1
Insulation Lifetime
10
Power Supply Recommendations
11
Layout
11.1
Layout Guidelines
11.1.1
PCB Material
11.2
Layout Example
12
Device and Documentation Support
12.1
Documentation Support
12.1.1
Related Documentation
12.2
Receiving Notification of Documentation Updates
12.3
Support Resources
12.4
Trademarks
12.5
Electrostatic Discharge Caution
12.6
Glossary
13
Mechanical, Packaging, and Orderable Information
13.1
Package Option Addendum
13.2
Tape and Reel Information
Package Options
Mechanical Data (Package|Pins)
DW|16
MSOI003I
Thermal pad, mechanical data (Package|Pins)
DW|16
QFND505A
Orderable Information
slasez0a_oa
slasez0a_pm
6.21
Insulation Characteristics Curves

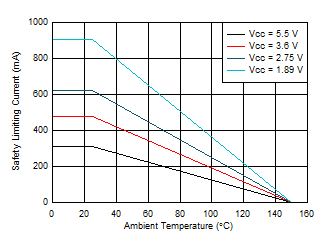

Figure 6-1
Thermal Derating Curve for Safety Limiting Current for DW-16 Package
Figure 6-2
Thermal Derating Curve for Safety Limiting Power for DW-16 Package
