9.2.2 Detailed Design Procedure

Unlike optocouplers, which require external components to improve performance, provide bias, or limit current, the ISO772x devices only require two external bypass capacitors to operate.

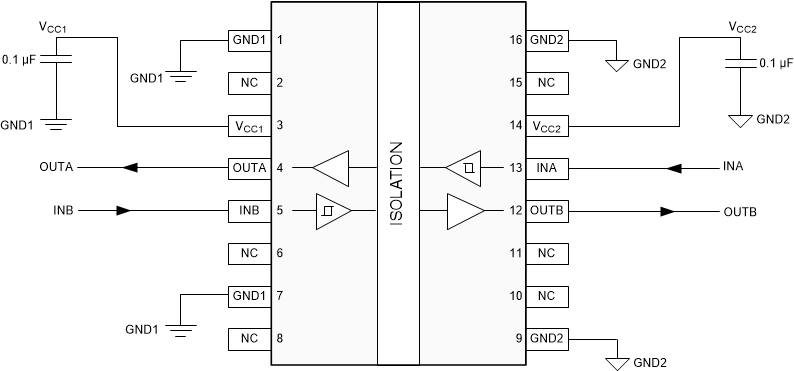

ISO7720 ISO7721 Typical ISO7721 Circuit Hook-upFigure 9-2 Typical ISO7721 Circuit Hook-up
