5.18 Insulation Characteristics Curves

ISO7740 ISO7741 ISO7742 Thermal Derating Curve for Safety Limiting Current for DW-16 Package
Figure 5-1 Thermal Derating Curve for Safety Limiting Current for DW-16 Package
ISO7740 ISO7741 ISO7742 Thermal Derating Curve for Safety Limiting Power for DW-16 Package
Figure 5-3 Thermal Derating Curve for Safety Limiting Power for DW-16 Package
ISO7740 ISO7741 ISO7742 Thermal Derating Curve for Safety Limiting Current for DBQ-16 Package
Figure 5-2 Thermal Derating Curve for Safety Limiting Current for DBQ-16 Package

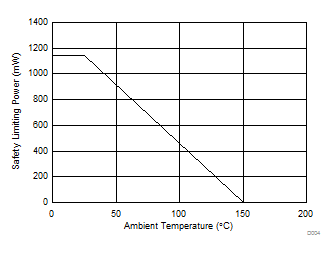

ISO7740 ISO7741 ISO7742 Thermal Derating Curve for Safety Limiting Power for DBQ-16 Package
Figure 5-4 Thermal Derating Curve for Safety Limiting Power for DBQ-16 Package
