8.2.3 Application Curve

The following typical eye diagrams of the ISO774xfamily of devices indicates low jitter and wide open eye at the maximum data rate of 100 Mbps.

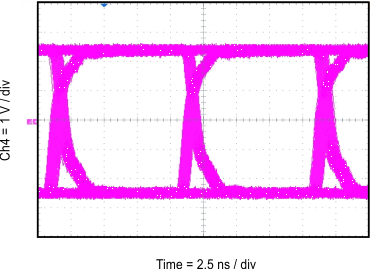

ISO7740 ISO7741 ISO7742 Eye Diagram at 100 Mbps PRBS 216 – 1, 5 V and 25°C
Figure 8-3 Eye Diagram at 100 Mbps PRBS 216 – 1, 5 V and 25°C
ISO7740 ISO7741 ISO7742 Eye Diagram at 100 Mbps PRBS 216 – 1, 2.5 V and 25°C
Figure 8-5 Eye Diagram at 100 Mbps PRBS 216 – 1, 2.5 V and 25°C
ISO7740 ISO7741 ISO7742 Eye Diagram at 100 Mbps PRBS 216 – 1, 3.3 V and 25°C
Figure 8-4 Eye Diagram at 100 Mbps PRBS 216 – 1, 3.3 V and 25°C
