8.2.3 Application Curve

The following typical eye diagrams of the ISO7741E-Q1 device indicates low jitter and wide open eye at the maximum data rate of 100 Mbps.

Figure 8-3 Eye Diagram at 100 Mbps PRBS 216 – 1, 5 V and 25°C

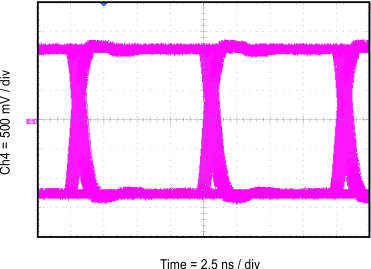

Figure 8-5 Eye Diagram at 100 Mbps PRBS 216 – 1, 2.5 V and 25°C
Figure 8-4 Eye Diagram at 100 Mbps PRBS 216 – 1, 3.3 V and 25°C
