Pin Configuration and Functions

ISO7760-Q1 ISO7761-Q1 ISO7762-Q1 ISO7763-Q1 ISO7760-Q1 DW and DBQ
                        Packages16-Pin SOIC and SSOP
                    Top View Figure 5-1 ISO7760-Q1 DW and DBQ Packages16-Pin SOIC and SSOP Top View
ISO7760-Q1 ISO7761-Q1 ISO7762-Q1 ISO7763-Q1 ISO7761-Q1 DW and DBQ
                        Packages16-Pin SOIC and SSOPTop View Figure 5-2 ISO7761-Q1 DW and DBQ Packages16-Pin SOIC and SSOPTop View
ISO7760-Q1 ISO7761-Q1 ISO7762-Q1 ISO7763-Q1 ISO7762-Q1 DW and DBQ
                        Packages16-Pin SOIC and SSOP
                    Top View Figure 5-3 ISO7762-Q1 DW and DBQ Packages16-Pin SOIC and SSOP Top View

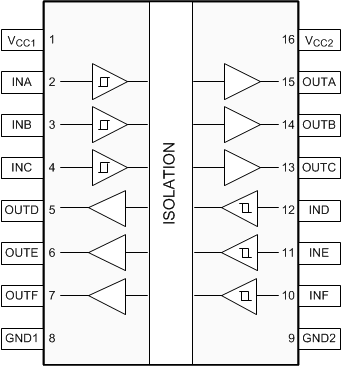

ISO7760-Q1 ISO7761-Q1 ISO7762-Q1 ISO7763-Q1 ISO7763-Q1 DW and DBQ
                        Packages16-Pin SOIC and SSOP
                    Top View Figure 5-4 ISO7763-Q1 DW and DBQ Packages16-Pin SOIC and SSOP Top View
Table 5-1 Pin Functions
PIN Type DESCRIPTION
NAME NO.
ISO7760-Q1 ISO7761-Q1 ISO7762-Q1 ISO7763-Q1
GND1 8 8 8 8 Ground connection for VCC1
GND2 9 9 9 9 Ground connection for VCC2
INA 2 2 2 2 I Input, channel A
INB 3 3 3 3 I Input, channel B
INC 4 4 4 4 I Input, channel C
IND 5 5 5 12 I Input, channel D
INE 6 6 11 11 I Input, channel E
INF 7 10 10 10 I Input, channel F
OUTA 15 15 15 15 O Output, channel A
OUTB 14 14 14 14 O Output, channel B
OUTC 13 13 13 13 O Output, channel C
OUTD 12 12 12 5 O Output, channel D
OUTE 11 11 6 6 O Output, channel E
OUTF 10 7 7 7 O Output, channel F
VCC1 1 1 1 1 Power supply, side 1
VCC2 16 16 16 16 Power supply, side 2
