5.19 Typical Characteristics

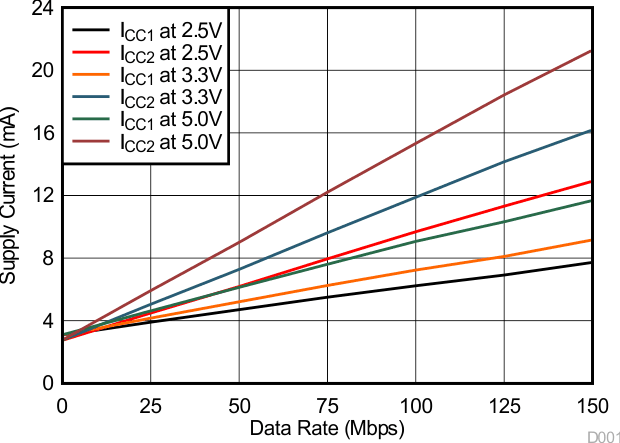

ISO7841 ISO7841F Supply Current vs Data Rate (With 15pF Load)
TA = 25°CCL = 15pF
Figure 5-5 Supply Current vs Data Rate (With 15pF Load)
ISO7841 ISO7841F High-Level Output Voltage vs High-level Output Current
TA = 25°C
Figure 5-7 High-Level Output Voltage vs High-level Output Current
ISO7841 ISO7841F Power Supply Undervoltage Threshold vs Free-Air Temperature
Figure 5-9 Power Supply Undervoltage Threshold vs Free-Air Temperature

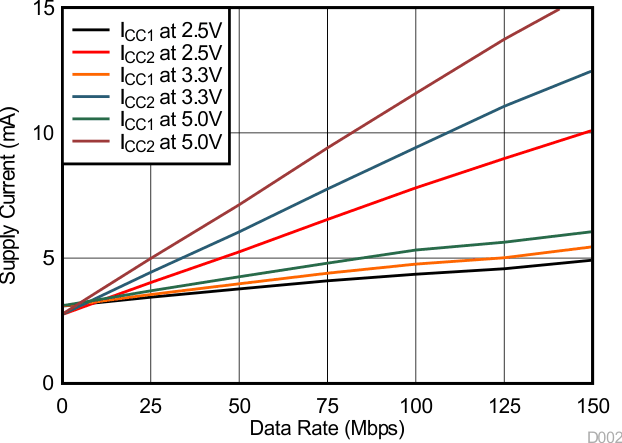

ISO7841 ISO7841F Supply Current vs Data Rate (With No Load)
TA = 25°CCL = No Load
Figure 5-6 Supply Current vs Data Rate (With No Load)

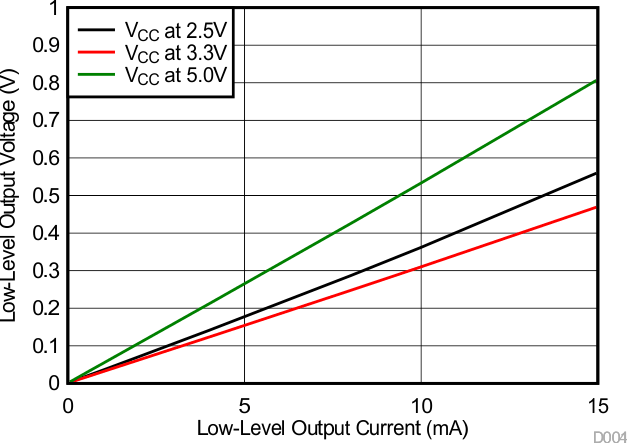

ISO7841 ISO7841F Low-Level Output Voltage vs Low-Level Output Current
TA = 25°C
Figure 5-8 Low-Level Output Voltage vs Low-Level Output Current

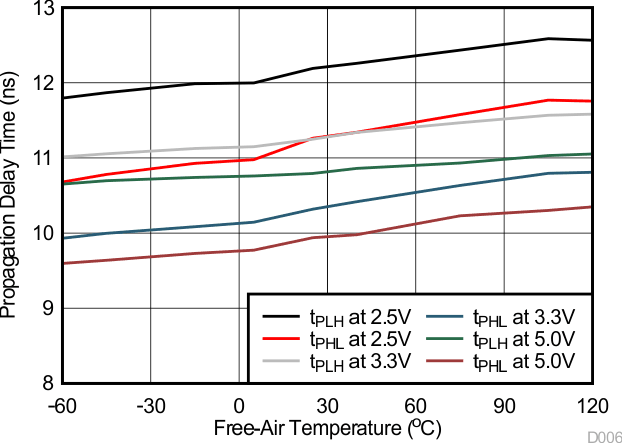

ISO7841 ISO7841F Propagation Delay Time vs Free-Air Temperature
Figure 5-10 Propagation Delay Time vs Free-Air Temperature
