7.10.3.3.1 SPI Peripheral Mode Switching Parameters (SPICLK = input, SPISIMO = input,
and SPISOMI = output)(1)(2)(3)
NO.PARAMETERMINTYPMAXUNIT
1tc(SPC)SCycle time, SPICLK(4)25ns
2(5)tw(SPCH)SPulse duration, SPICLK high (clock polarity = 0)10ns
tw(SPCL)SPulse duration, SPICLK low (clock polarity = 1)10
3(5)tw(SPCL)SPulse duration, SPICLK low (clock polarity = 0)10ns
tw(SPCH)SPulse duration, SPICLK high (clock polarity = 1)10
4(5)td(SPCH-SOMI)SDelay time, SPISOMI valid after SPICLK high (clock polarity = 0)10ns
td(SPCL-SOMI)SDelay time, SPISOMI valid after SPICLK low (clock polarity = 1)10
5(5)th(SPCH-SOMI)SHold time, SPISOMI data valid after SPICLK high (clock polarity = 0)2ns
th(SPCL-SOMI)SHold time, SPISOMI data valid after SPICLK low (clock polarity = 1)2
4(5)td(SPCH-SOMI)SDelay time, SPISOMI valid after SPICLK high (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)10ns
td(SPCL-SOMI)SDelay time, SPISOMI valid after SPICLK low (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)10
5(5)th(SPCH-SOMI)SHold time, SPISOMI data valid after SPICLK high (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)2ns
th(SPCL-SOMI)SHold time, SPISOMI data valid after SPICLK low (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)2
6(5)tsu(SIMO-SPCL)SSetup time, SPISIMO before SPICLK low (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)3ns
tsu(SIMO-SPCH)SSetup time, SPISIMO before SPICLK high (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)3
7(5)th(SPCL-SIMO)SHold time, SPISIMO data valid after SPICLK low (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1)1ns
th(SPCL-SIMO)SHold time, SPISIMO data valid after SPICLK high (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1)1
(1) The MASTER bit (SPIGCRx.0) is cleared ( where x = 0 or 1 ).
(2) The CLOCK PHASE bit (SPIFMTx.16) is either cleared or set for CLOCK PHASE = 0 or CLOCK PHASE = 1 respectively.
(3) tc(MSS_VCLK) = main subsystem clock time = 1 / f(MSS_VCLK). For more details, see the Technical Reference Manual.
(4) When the SPI is in peripheral mode, the following must be true: For PS values from 1 to 255: tc(SPC)S ≥ (PS +1)tc(MSS_VCLK) ≥ 25 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits.For PS values of 0: tc(SPC)S = 2tc(MSS_VCLK) ≥ 25 ns.
(5) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

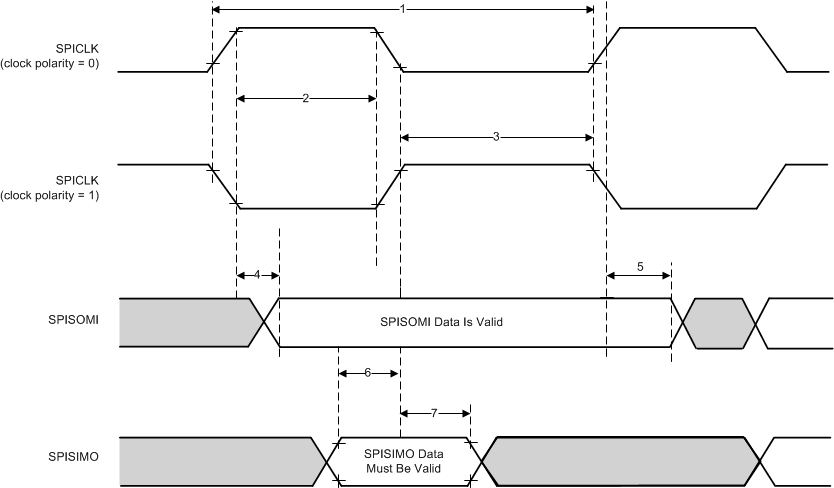

IWR1843 SPI peripheral Mode External Timing (CLOCK PHASE = 0)Figure 7-8 SPI peripheral Mode External Timing (CLOCK PHASE = 0)
IWR1843 SPI peripheral Mode External Timing (CLOCK PHASE = 1)Figure 7-9 SPI peripheral Mode External Timing (CLOCK PHASE = 1)
