6.9 Typical Characteristics

Over recommended operating conditions unless specified otherwise. VDD = 1.8 V, TJ = 25°C.One channel enabled with a button sampling window of 1 ms unless specified otherwise.

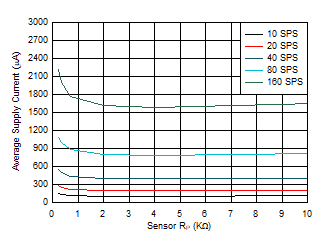

GUID-20210604-CA0I-MXGF-RWDQ-KX66ZJQS3Z6V-low.gifFigure 6-2 Supply Current vs Sensor RP for Normal Power Mode. Sensor Frequency = 10 MHz. Sampling Window = 2mS. Four Channels Enabled.
GUID-20210604-CA0I-TGVN-6LNL-X4K61W1SXMSM-low.gifFigure 6-4 Supply Current vs Sensor RP for Low Power Mode. Sensor Frequency = 10 MHz.
GUID-20211019-SS0I-DQLW-RCM5-1N5MDKZFFTVZ-low.pngFigure 6-6 Supply Current vs. VDD. Sensor RP = 720 Ω, Scan Rate = 40 SPS, Sensor Frequency = 20 MHz.
GUID-20211015-SS0I-9RDP-PXL2-Q1RFH52Q6TK6-low.pngFigure 6-8 Standby Current vs VDD
GUID-20210604-CA0I-6FRZ-N7WV-WR6B27PNMVQM-low.pngFigure 6-3 Supply Current vs Sensor RP for Normal Power Mode. Sensor Frequency = 10 MHz. Sampling Window = 2mS. Two Channels Enabled.
GUID-20211019-SS0I-ZSLX-GDXR-T0KRHQRPXZCG-low.pngFigure 6-5 Supply Current vs Temperature. Sensor RP = 720 Ω, Scan Rate = 40 SPS, Sensor Frequency = 20 MHz.
GUID-20211015-SS0I-CKZC-6BFD-N5BDJ7184XNS-low.pngFigure 6-7 Standby Current vs. Temperature
GUID-C879C8E9-1275-4C98-A155-B1F538BC5811-low.gifFigure 6-9 Scan Rate Distribution at 30°C
