10.2.1.2.4 Current-Sense Resistance

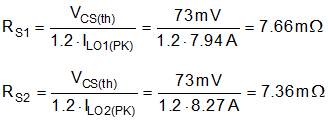

  1. Calculate the current-sense resistance based on a maximum peak current capability of at least 20% higher than the peak inductor current at full load to provide sufficient margin during start-up and load-on transients. Calculate the current sense resistances using Equation 36.
    Equation 36. GUID-0210DFAA-85DE-45E5-B95A-C2FAF2981D75-low.gif

    where

    • VCS(th) is the 73-mV current limit threshold.
  2. Select a standard resistance value of 7 mΩ for both shunts. A 0508 footprint component with wide aspect ratio termination design provides 1-W power rating, low parasitic series inductance, and compact PCB layout. Carefully observe the layout guidelines to make sure that noise and DC errors do not corrupt the differential current-sense voltages measured at [CS1, VOUT1] and [CS2, VOUT2].
  3. Place the shunt resistor close to the inductor.
  4. Use Kelvin-sense connections, and route the sense lines differentially from the shunt to the LM25143.
  5. The CS-to-output propagation delay (related to the current limit comparator, internal logic and power MOSFET gate drivers) causes the peak current to increase above the calculated current limit threshold. For a total propagation delay of tCS-DELAY of 40 ns, use Equation 37 to calculate the worst-case peak inductor current with the output shorted.
    Equation 37. GUID-64B88A33-D0EB-463C-A620-1BCFA3A6DF87-low.gif
  6. Based on this result, select an inductor for each channel with saturation current greater than 12 A across the full operating temperature range.
