8.2.2 Application Curves

Unless otherwise stated, application performance curves were taken at TA = 25°C.

GUID-C9C162B2-5BDD-40C5-B623-18858C456DF5-low.gifFigure 8-2 Efficiency (Linear Scale)
GUID-3B917113-E51D-4E84-8C71-FD67B6CD913F-low.gifFigure 8-4 Load Regulation (Linear Scale)
VIN stepped to 24 V 12-Ω Load
Figure 8-6 Start-up Characteristic
VIN = 13.5 V IOUT = 1 A

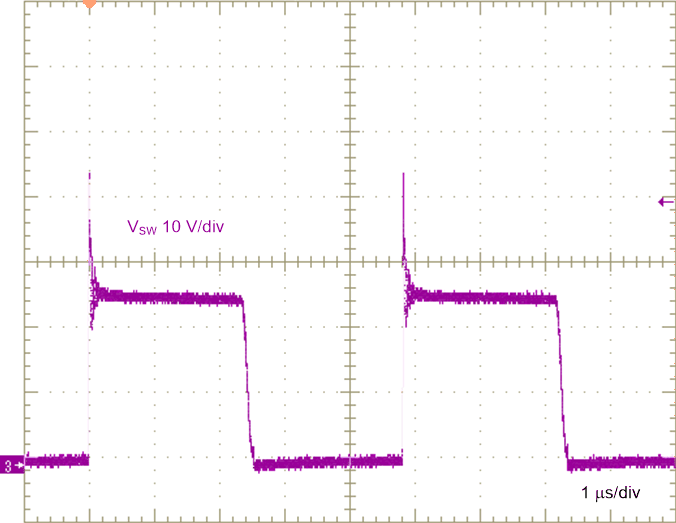

Figure 8-8 Switch Node Voltage
VIN = 36 V IOUT = 1 A
Figure 8-10 Switch Node Voltage
VIN = 13.5 V

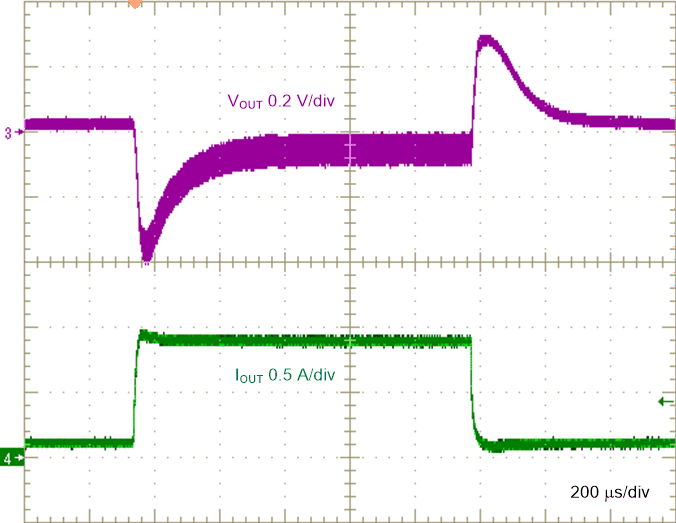

Figure 8-12 Load Transient, 0.1 A to 1 A, 0.1 A/µs
VIN = 24 V 150 kHz to 30 MHz LIN = 4.7 µH
IOUT = 1 A CIN = 10 µF
Figure 8-14 CISPR 25 Class 5 Conducted EMI Plot

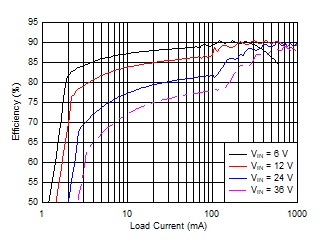

GUID-751F8489-FA0C-401E-90B5-8C1E4F2B8627-low.gifFigure 8-3 Efficiency (Log Scale)
GUID-6E38FAF2-9A16-4DC4-BA7D-BC482C08DE1A-low.gifFigure 8-5 Load Regulation (Log Scale)
VIN = 24 V 12-Ω Load
Figure 8-7 Enable ON and OFF Characteristic
VIN = 24 V IOUT = 1 A
Figure 8-9 Switch Node Voltage
VIN = 24 V
Figure 8-11 Load Transient, 0.1 A to 1 A, 0.1 A/µs
VIN = 6 V
Figure 8-13 Load Transient, 0.1 A to 0.5 A, 0.1 A/µs
VIN = 24 V 30 MHz to 108 MHz LIN = 4.7 µH
IOUT = 1 A CIN = 10 µF
Figure 8-15 CISPR 25 Class 5 Conducted EMI Plot
