3 Description

The LM26420-Q1 regulator is a monolithic, high-efficiency dual PWM step-down DC/DC converter. This device has the ability to drive two 2A loads with an internal 75mΩ MOS top switch and an internal 50mΩ MOS bottom switch using state-of-the-art BICMOS technology results in the best power density available. The world-class control circuitry allow on times as low as 30ns, thus supporting exceptionally high-frequency conversion over the entire 3V to 5.5V input operating range down to the minimum output voltage of 0.8V.

Although the operating frequency is high, efficiencies up to 93% are easy to achieve. External shutdown is included, featuring an ultra-low standby current. The LM26420-Q1 uses current-mode control and internal compensation to provide high performance regulation over a wide range of operating conditions.

Because the switching frequency is made sure to be greater than 2MHz, the LM26420-Q1 can be used in automotive applications without causing interference in the AM frequency band.

Package Information
PART NUMBERPACKAGE(1)PACKAGE SIZE(2)
LM26420-Q1PWP (HTSSOP, 20)6.5mm × 6.4mm
RUM (WQFN, 16)4mm × 4mm
(1) For more information, see Section 10.
(2) The package size (length × width) is a nominal value and includes pins, where applicable.

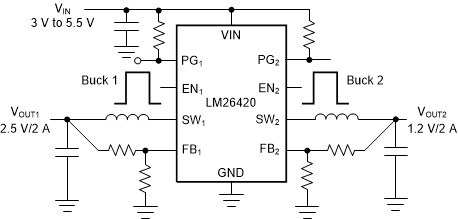

LM26420-Q1 LM26420 Dual Buck DC/DC ConverterLM26420 Dual Buck DC/DC Converter
LM26420-Q1 LM26420 Efficiency (Up to 93%)LM26420 Efficiency (Up to 93%)
