Typical characteristics
section is applicable for LM2904B-Q1 and LM2904BA-Q1. The typical characteristics
data section was taken with TA = 25°C, VS = 36 V (±18 V),
VCM = VS / 2, RLOAD = 10 kΩ connected to
VS / 2 (unless otherwise noted).
Figure 7-1 Offset Voltage Production Distribution
Figure 7-3 Offset Voltage vs Temperature
Figure 7-5 Open-Loop Gain and Phase vs Frequency

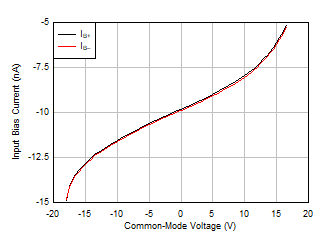

Figure 7-7 Input Bias Current vs Common-Mode Voltage
Figure 7-9 Input Bias Current vs Temperature
Figure 7-11 Output Voltage Swing vs Output Current (Sourcing)
Figure 7-13 CMRR
and PSRR vs Frequency

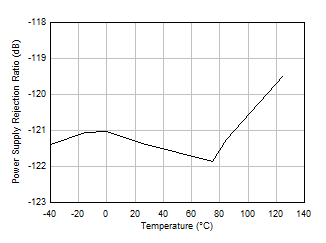

Figure 7-15 Power
Supply Rejection Ratio vs Temperature (dB)

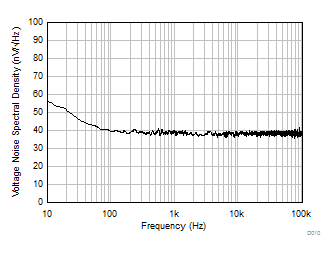

Figure 7-17 Input
Voltage Noise Spectral Density vs Frequency
| G = –1, f = 1 kHz, BW = 80
kHz, |
| VOUT = 10
VPP, RL connected to
V– |
| See Figure 8-3 |

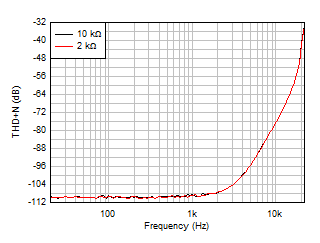

Figure 7-19 THD+N
Ratio vs Frequency, G = –1
| G = –1, f = 1 kHz, BW = 80
kHz, |
| RL connected to
V– |
| See Figure 8-3 |

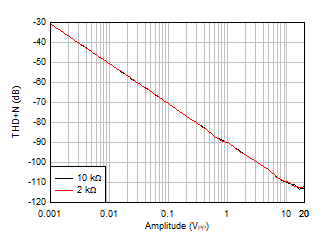

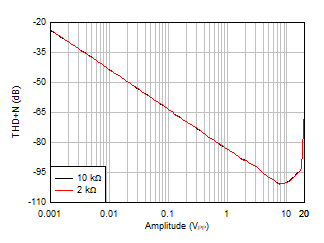

Figure 7-21 THD+N
vs Output Amplitude, G = –1

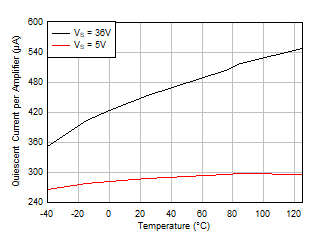

Figure 7-23 Quiescent Current vs Temperature
| G = 1, 100-mV output step,
RL = open |

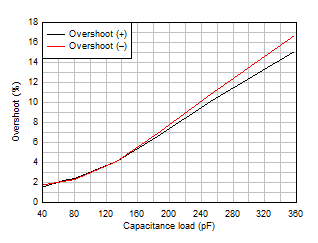

Figure 7-25 Small-Signal Overshoot vs Capacitive Load

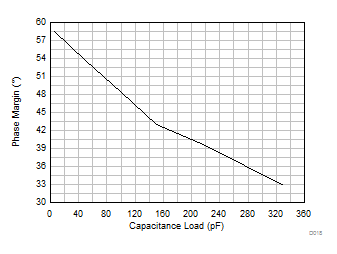

Figure 7-27 Phase
Margin vs Capacitive Load

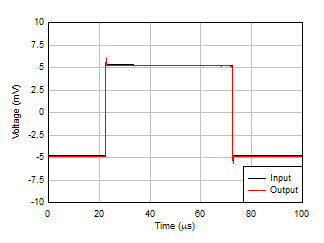

Figure 7-29 Small-Signal Step Response, G = 1
Figure 7-31 Large-Signal Step Response (Rising)
Figure 7-33 Large-Signal Step Response
Figure 7-35 Short-Circuit Current vs Temperature

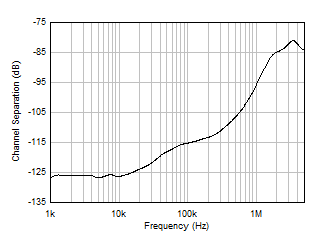

Figure 7-37 Channel Separation vs Frequency

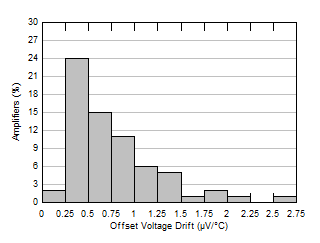

Figure 7-2 Offset Voltage Drift Distribution
Figure 7-4 Offset Voltage vs Common-Mode Voltage

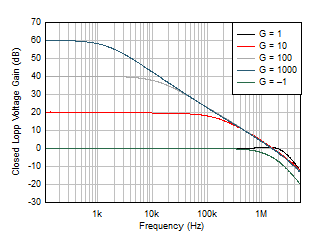

Figure 7-6 Closed-Loop Gain vs Frequency
Figure 7-8 Input Offset Current vs Common-Mode Voltage

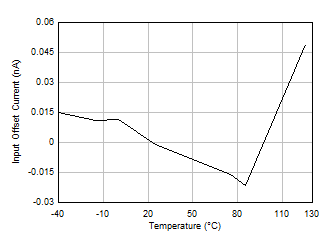

Figure 7-10 Input Offset Current vs Temperature

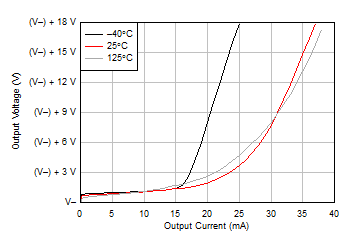

Figure 7-12 Output Voltage Swing vs Output Current (Sinking)

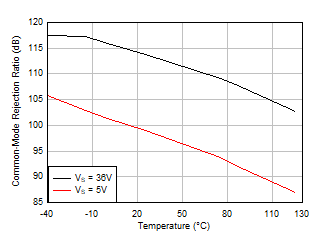

Figure 7-14 Common-Mode Rejection Ratio vs
Temperature
(dB)
Figure 7-16 0.1-Hz to 10-Hz Noise
| G = 1, f = 1 kHz, BW = 80
kHz, |
| VOUT = 10
VPP, RL connected to
V– |

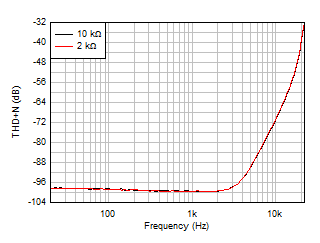

Figure 7-18 THD+N
Ratio vs Frequency, G = 1
| G = 1, f = 1 kHz, BW = 80
kHz, |
| RL connected to
V– |
| |
Figure 7-20 THD+N
vs Output Amplitude, G = 1
Figure 7-22 Quiescent Current vs Supply Voltage
Figure 7-24 Open-Loop Output Impedance vs Frequency
| G = –1, 100-mV output step,
RL = open |
Figure 7-26 Small-Signal Overshoot vs Capacitive Load

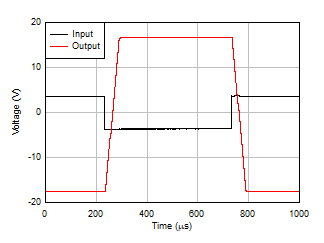

Figure 7-28 Overload Recovery
Figure 7-30 Small-Signal Step Response, G = –1

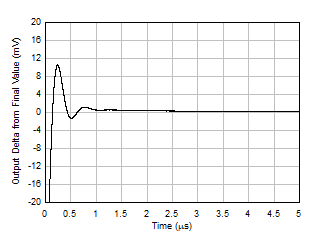

Figure 7-32 Large-Signal Step Response (Falling)

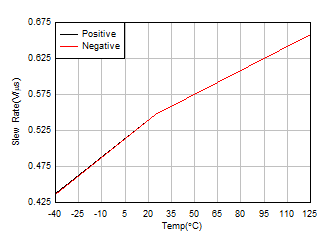

Figure 7-34 Slew Rate vs Temperature

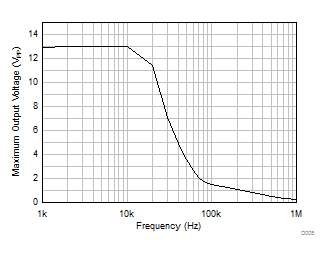

Figure 7-36 Maximum Output Voltage vs Frequency
Figure 7-38 EMIRR (Electromagnetic Interference Rejection Ratio) vs Frequency
