6.6 Typical Characteristics

At TA = 25°C, unless otherwise stated.

VOUT=12 VFsw=300 kHzL1=4.7 μH
IOUT=5 A
Figure 6-1 Efficiency vs VIN
GUID-4A61275B-91F7-4436-B0E4-2C2C4B66CF42-low.gifFigure 6-3 Oscillator Frequency

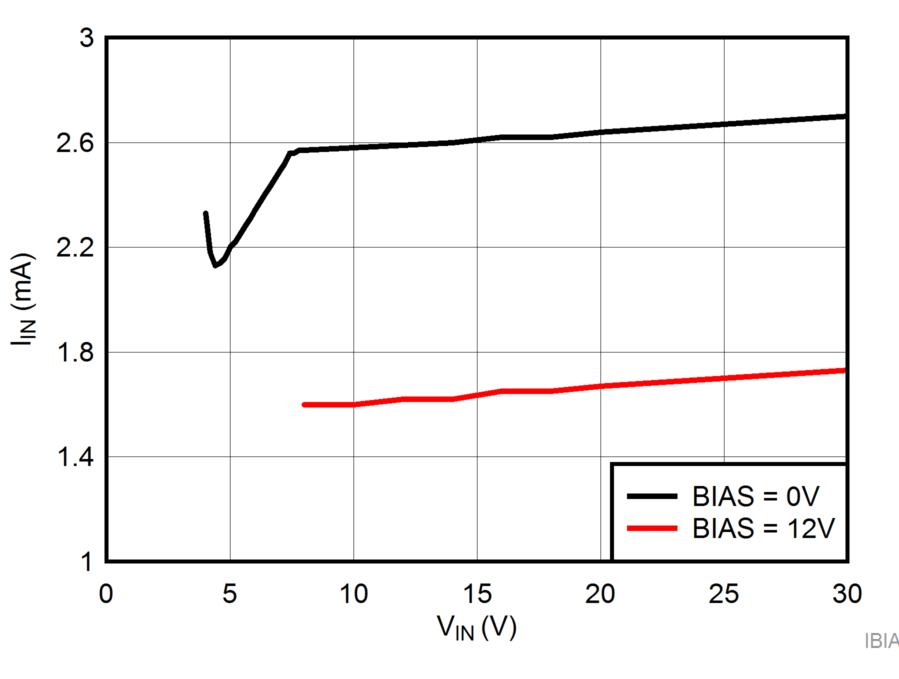

GUID-F63FDAFD-624B-4B94-A2F7-3B204EFE6EAC-low.gifFigure 6-5 IIN Operating vs VIN
GUID-AC4716FA-543E-41A9-8132-A0FEBC42C3A9-low.gifFigure 6-7 ENABLE/UVLO Rising Threshold vs Temperature
GUID-F6662C46-8172-4120-9AF1-74AEE37A1815-low.gifFigure 6-9 Boost Current Limit vs Temperature

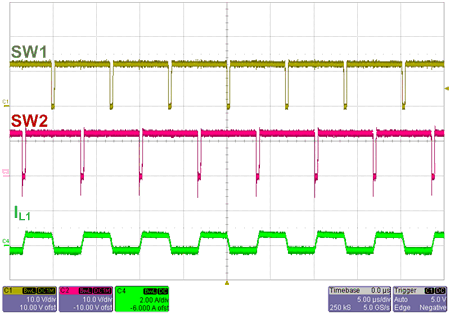

VOUT=12 VVIN=11 V
Figure 6-11 Forced CCM Operation (Buck-Boost)
VOUT=12 VVIN=13 V
Figure 6-13 Forced CCM Operation (Buck-Boost)

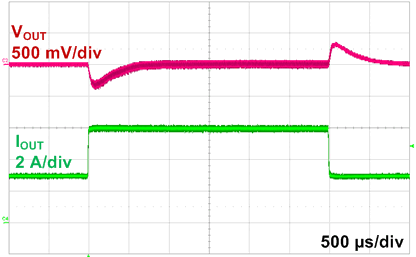

VIN=6 VVOUT=12 VLoad 3A to 6A
Figure 6-15 Load Step (Boost)
VIN=24 VVOUT=12 VLoad 3A to 6A
Figure 6-17 Load Step (Buck)

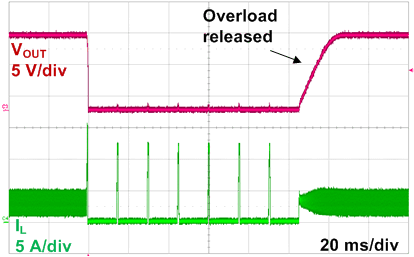

VIN=24 VVOUT=12 VHiccup Enabled
Figure 6-19 Hiccup Mode Current Limit

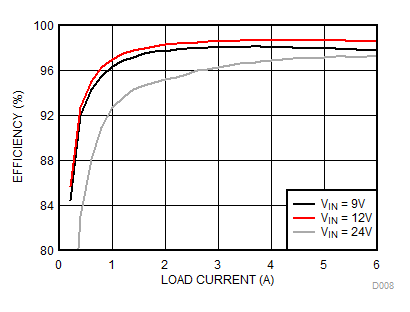

VOUT =12 V Fsw=300 kHz L1=4.7 μH
Figure 6-2 Efficiency vs Load

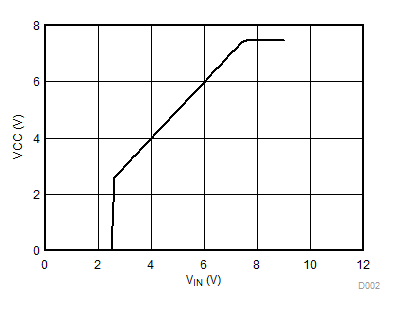

GUID-8399C26F-02F0-4C59-A677-55F76B0FF9BE-low.gifFigure 6-4 VCC vs VIN
GUID-33066ABB-1E10-4235-B357-145EAD1A98DC-low.gifFigure 6-6 IIN Shutdown vs VIN
GUID-473CB827-321A-4633-AD93-67B71EE2367D-low.gifFigure 6-8 Buck Current Limit vs Temperature

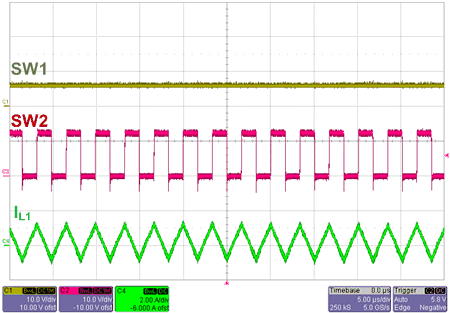

VOUT=12 VVIN=6 V
Figure 6-10 Forced CCM Operation (Boost)
VOUT=12 VVIN=12 V
Figure 6-12 Forced CCM Operation (Buck-Boost)
VOUT=12 VVIN=24 V
Figure 6-14 Forced CCM Operation (Buck)

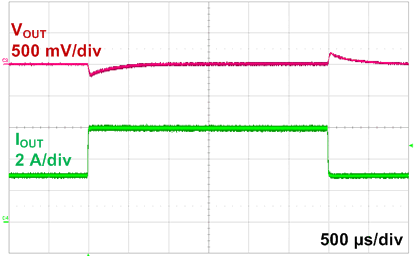

VIN=12 VVOUT=12 VLoad 3A to 6A
Figure 6-16 Load Step (Buck-Boost)

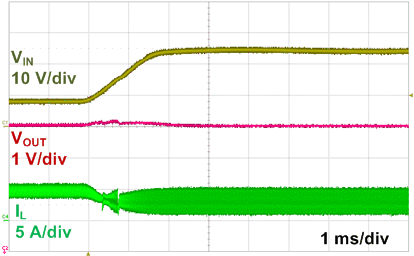

VIN=8 V to 24 VVOUT=12 VIOUT=3A
Figure 6-18 Line Transient

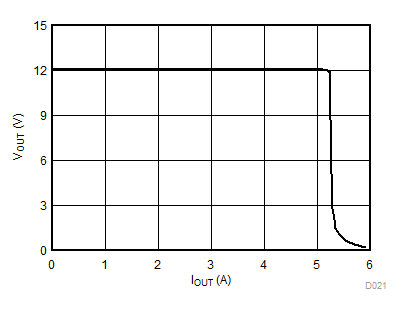

VIN=24 VRSNS=10 mΩ
Figure 6-20 Constant Current Constant Voltage (CCCV) Operation
