7.4.1.2.2 11-Bit Code Calculation

The 11-bit linear mapping follows the equation:

Equation 4. LM3697 mapping_equation_11-bit_linear.gif

Where ILED_FULLSCALE is the full-scale LED current setting, Code is the 11-bit backlight code in the Control Brightness MSB and LSB registers and DPWM is the PWM Duty Cycle.

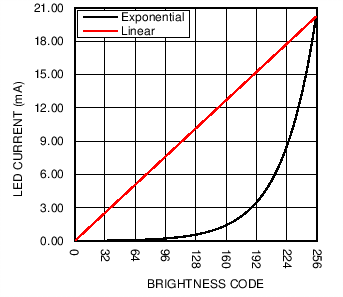

LM3697 C048_SNOSC2.pngFigure 10. LED Current Mapping Modes (8-Bit)

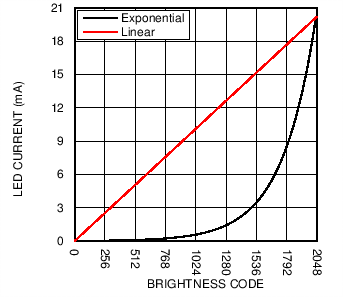

LM3697 C047_SNOSC2.pngFigure 11. LED Current Mapping Modes (11-Bit)
