7.6 Typical Characteristivcs

At TA = 25°C, VOUT = 12 V, LO = 33 µH, and RRON = 105 kΩ, unless otherwise specified.

GUID-9574FB44-4735-48D5-8459-5706CAFE9B24-low.pngFigure 7-1 Conversion Efficiency (Linear Scale)
GUID-CA9F5A0F-EDD0-4DA8-A5D9-A506E76A7508-low.pngFigure 7-3 Shutdown, Sleep, and Supply Current vs Temperature

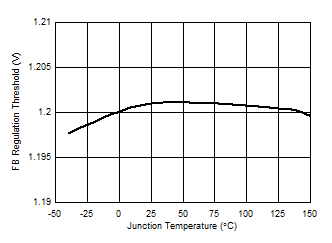

GUID-5009E93F-E37D-4BF7-9E7C-EF4F589809A9-low.gifFigure 7-5 Feedback Comparator Threshold vs Temperature
Figure 7-7 Peak Current Limit vs Temperature
GUID-DB4D43A2-A0A0-4C88-B8F6-4AA91B9C82E5-low.pngFigure 7-2 Load and Line Regulation
Figure 7-4 VIN Active Current vs Temperature
Figure 7-6 MOSFETs On-State Resistance vs Temperature
GUID-B72ED38B-2293-420E-89AA-527DC260972A-low.pngFigure 7-8 COT On Time vs VIN
