9.1.1 Bypass Switch / Disconnection Switch Control

The STATUS pin can be used to control an external bypass switch, which turns on when the boost is in standby mode, or to control an external disconnection switch that turns off when the boost is in standby mode. In Figure 9-1, a P-channel MOSFET is used to connect the boost supply input to the load directly when the boost is in standby mode. This bypass switch can be turned on slowly, but it must be turned off fast after the STATUS pin is pulled up by the wake-up event. The STATUS pin is rated to the absolute maximum 65 V.

GUID-5E8E6E13-A996-4A7A-9F4D-B3F2B190939D-low.gifFigure 9-1 Bypass Switch Control Example

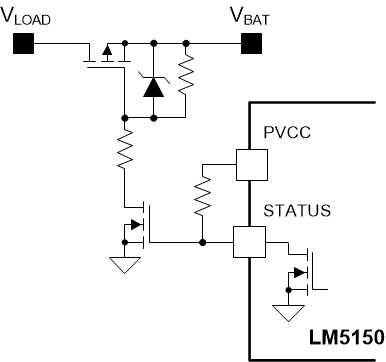

In Figure 9-2, a P-channel MOSFET is used to disconnect the boost supply output from the battery when boost is not required. This disconnection switch can be turned off slowly, but it must be turned on fast after the STATUS pin is pulled up by the wake-up event.

GUID-C42CD4D4-B124-4E8D-BAAB-85F47D19666B-low.gifFigure 9-2 Disconnection Switch Control Example
