9.3.1 Lower Standby Threshold in SS Configuration

By connecting the VIN pin to the VOUT pin, the current limit threshold at the current limit comparator input (VCL) is set to 1.2 V. In SS configuration, the VOUT standby threshold is ignored. The device goes into the standby mode when VOUT > VIN standby threshold.

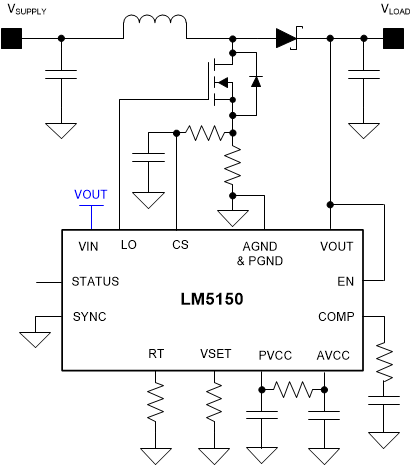

GUID-4A827203-E2D4-4166-BF6E-F93D0A20F6E3-low.gifFigure 9-6 Lower Standby Threshold in SS Configuration
