9.2.3 Application Curves

Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. The circuit is shown in Figure 17, with the appropriate BOM from Table 4.

LM60440 LM60430 Eff_5Vout_Low_load_PR.gif
VOUT = 5 V 400 kHz
Figure 11. Low-Load Efficiency

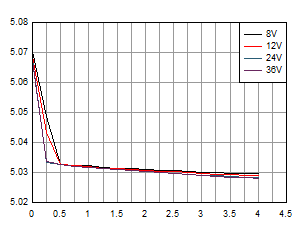

LM60440 LM60430 LoadReg_PR.gif
VOUT = 5 V
Figure 13. Line and Load Regulation
LM60440 LM60430 Load_transient_0_to_4A_PR.gif
VIN = 12 V VOUT = 5 V
IOUT = 0 A to 4 A tf = tr = 4 µs
Figure 15. Load Transient
LM60440 LM60430 Eff_5Vout_HighLoad_PR.gif
VOUT = 5 V 400 kHz
Figure 12. High-Load Efficiency
LM60440 LM60430 startup_4A_PR.gif
VIN = 13.5 V VOUT = 5 V IOUT = 4 A
Figure 14. Start-up
LM60440 LM60430 Load_transient_2_to_4A_PR.gif
VIN = 12 V VOUT = 5 V
tf = tr = 2 µs IOUT = 2 A to 4 A
Figure 16. Load Transient
LM60440 LM60430 typ_app_char_cir5.gifFigure 17. Circuit for Application Curves

Table 4. BOM for Typical Application Curves

VOUT FREQUENCY RFBB COUT CIN + CHF L U1
5 V 400 kHz 24.9 k 2 x 47 µF + 22µF 4.7 µF + 2 × 220 nF 6.8 µH, 20.8 mΩ LM60440ARPKPR
