SNVSCW0 October   2024 LM68680-Q1

ADVANCE INFORMATION

  1.   1
  2. 1Features
  3. 2Applications
  4. 3Description
  5. 4Device Comparison Table
  6. 5Device and Documentation Support
    1. 5.1 Development Support
    2. 5.2 Documentation Support
      1. 5.2.1 Related Documentation
        1. 5.2.1.1 PCB Layout Resources
        2. 5.2.1.2 Thermal Design Resources
    3. 5.3 Receiving Notification of Documentation Updates
    4. 5.4 Support Resources
    5. 5.5 Trademarks
    6. 5.6 Electrostatic Discharge Caution
    7. 5.7 Glossary
  7. 6Revision History
  8. 7Mechanical, Packaging, and Orderable Information
    1. 7.1 Tape and Reel Information

Package Options

Mechanical Data (Package|Pins)
  • RZY|26
Thermal pad, mechanical data (Package|Pins)
Orderable Information

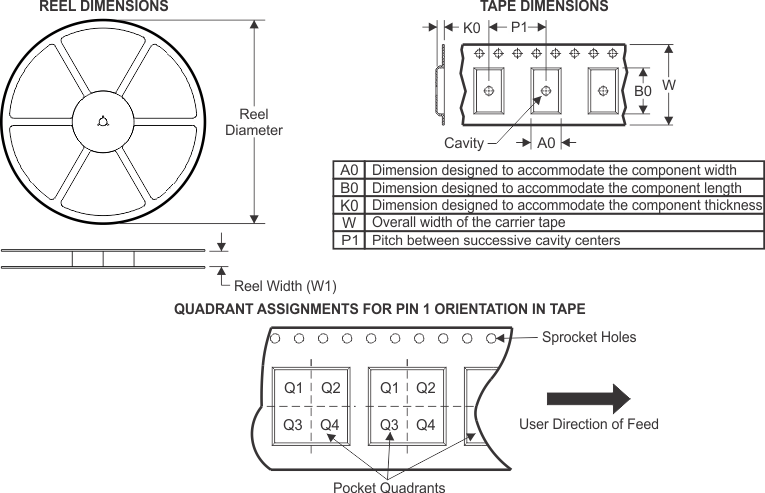

7.1 Tape and Reel Information

LM68680-Q1
Device Package
Type		 Package Drawing Pins SPQ Reel
Diameter (mm)		 Reel
Width W1 (mm)		 A0
(mm)		 B0
(mm)		 K0
(mm)		 P1
(mm)		 W
(mm)		 Pin1
Quadrant
PLM68680FRZYRQ1 VQFN-FCRLF RZY 26 3000 330 12.4 3.79 3.79 0.71 8.0 12.0 Q1
LM68680-Q1
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
PLM68680FRZYRQ1 VQFN-FCRLF RZY 26 3000 367 367 35
