8.2.3 Application Curves

Unless otherwise specified the following conditions apply:
Unless otherwise specified the following conditions apply:GUID-07405D95-19E5-447C-8B3F-B22B0203EF77-low.gif
VOUT = 5 VfSW = 400 kHzAuto Mode

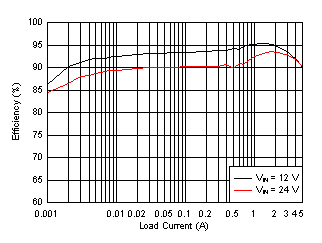

Figure 8-4 LM76005 Efficiency. Unless otherwise specified the following conditions apply:
VOUT = 5 VfSW = 400 kHzFPWM Mode

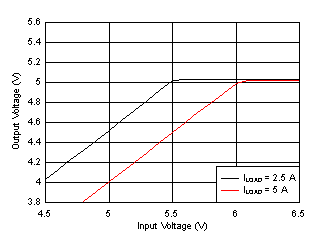

Figure 8-6 LM76005 Voltage Dropout
VIN = 12 VVOUT = 5 VfSW = 400 kHz
No LoadAuto Mode

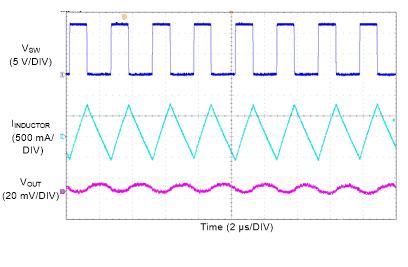

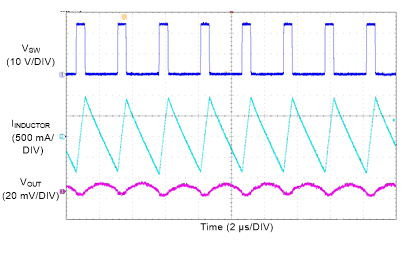

Figure 8-8 LM76005 Switching Waveform and Output Ripple
VIN = 12 VVOUT = 5 VfSW = 400 kHz
No LoadFPWM Mode
Figure 8-10 LM76005 Switching Waveform and Output Ripple
VIN = 12 VVOUT = 5 VfSW = 400 kHz
100-mA LoadAuto Mode
Figure 8-12 LM76005 Switching Waveform and Output Ripple
VIN = 12 VVOUT = 5 VfSW = 400 kHz
100-mA LoadFPWM Mode
Figure 8-14 LM76005 Switching Waveform and Output Ripple
VIN = 12 VVOUT = 5 VfSW = 400 kHz
No LoadAuto Mode

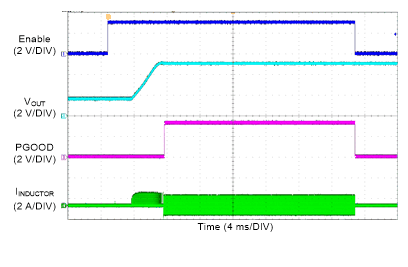

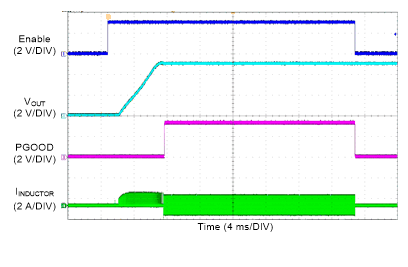

Figure 8-16 LM76005 Start-up Waveform
VIN = 12 VVOUT = 5 VfSW = 400 kHz
No LoadFPWM Mode
Figure 8-18 LM76005 Start-up Waveform
VIN = 12 VVOUT = 5 VfSW = 400 kHz
5-A Load

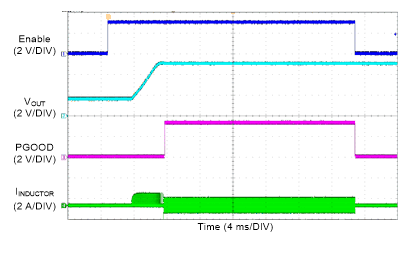

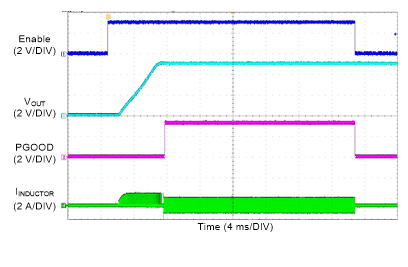

Figure 8-20 LM76005 Start-up Waveform
VIN = 12 V VOUT = 5 V fSW = 400 kHz
No Load Auto Mode

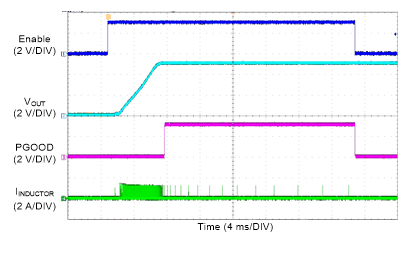

Figure 8-22 LM76005 Start-up With Pre-Biased Output
VIN = 12 V VOUT = 5 V fSW = 400 kHz
Auto Mode

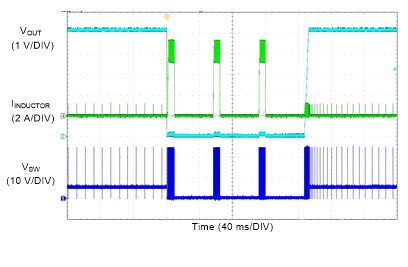

Figure 8-24 LM76005 Short-Circuit Behavior With Hiccup
VIN = 13.5 V VOUT = 5 V fSW = 400 kHz
CFLT = 4 × 2.2 µF, LFLT = 1 µH IOUT = 3.5 A

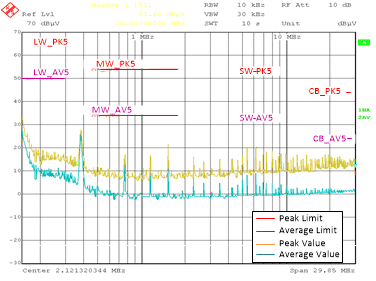

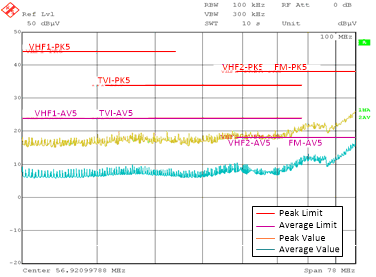

Figure 8-26 LM76005 Conducted EMI Result vs. CISPR25 Limits - Low Frequency
VIN = 13.5 V VOUT = 5 V fSW = 400 kHz
CFLT = 4 × 2.2 µF, LFLT = 1 µH IOUT = 3.5 A

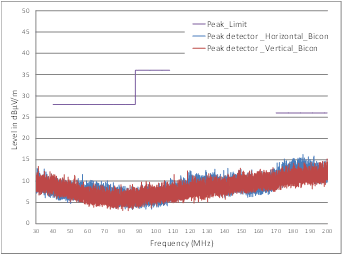

Figure 8-28 LM76005 Radiated EMI Result vs. CISPR25 Limits - Low Frequency
VOUT = 5 VfSW = 400 kHzAuto Mode

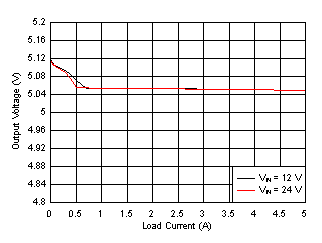

Figure 8-5 LM76005 Load and Line Regulation
VOUT = 5 VfSW = 400 kHzFPWM Mode
Figure 8-7 LM76005 Frequency Dropout
VIN = 24 VVOUT = 5 VfSW = 400 kHz
No LoadAuto Mode
Figure 8-9 LM76005 Switching Waveform and Output Ripple
VIN = 24 VVOUT = 5 VfSW = 400 kHz
No LoadFPWM Mode
Figure 8-11 LM76005 Switching Waveform and Output Ripple
VIN = 24 VVOUT = 5 VfSW = 400 kHz
100-mA LoadAuto Mode
Figure 8-13 LM76005 Switching Waveform and Output Ripple
VIN = 24 VVOUT = 5 VfSW = 400 kHz
100-mA LoadFPWM Mode
Figure 8-15 LM76005 Switching Waveform and Output Ripple
VIN = 24 VVOUT = 5 VfSW = 400 kHz
No LoadAuto Mode
Figure 8-17 LM76005 Start-up Waveform
VIN = 24 VVOUT = 5 VfSW = 400 kHz
No LoadFPWM Mode
Figure 8-19 LM76005 Start-up Waveform
VIN = 24VVOUT = 5 VfSW = 400 kHz
5-A Load

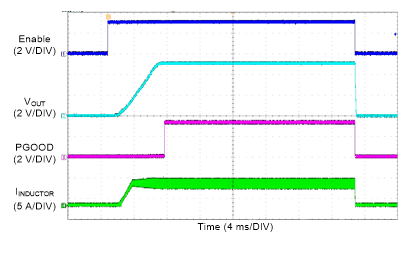

Figure 8-21 LM76005 Start-up Waveform
VIN = 24V VOUT = 5 V fSW = 400 kHz
No Load Auto Mode
Figure 8-23 LM76005 Start-up With Pre-Biased Output
VIN = 24 V VOUT = 5 V fSW = 400 kHz
Auto Mode
Figure 8-25 LM76005 Short-Circuit Behavior With Hiccup
VIN = 13.5 V VOUT = 5 V fSW = 400 kHz
CFLT = 4 × 2.2 µF, LFLT = 1 µH IOUT = 3.5 A
Figure 8-27 LM76005 Conducted EMI Result vs. CISPR25 Limits - High Frequency
VIN = 13.5 V VOUT = 5 V fSW = 400 kHz
CFLT = 4 × 2.2 µF, LFLT = 1 µH IOUT = 3.5 A
Figure 8-29 LM76005 Radiated EMI Result vs. CISPR25 Limits - High Frequency
