6.9 Typical Characteristics

Unless otherwise specified, VIN = 24 V. Curves represent most likely parametric norm at specified condition.

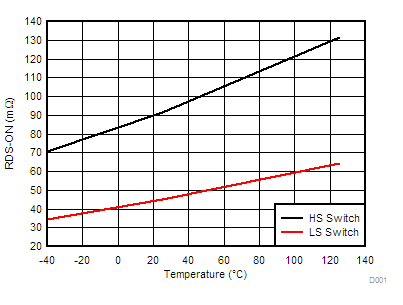

GUID-6408F2F4-B81F-4546-ACFA-AC75F3177702-low.gifFigure 6-1 High-Side and Low-Side Switch RDS-ON
GUID-C5FE0959-042E-4DD0-9586-25F72FF20310-low.gifFigure 6-3 Feedback Voltage

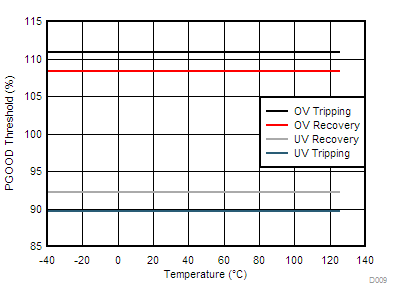

GUID-60D51D94-22F8-4CBF-A66F-CEECFE157907-low.gifFigure 6-5 PGOOD Threshold

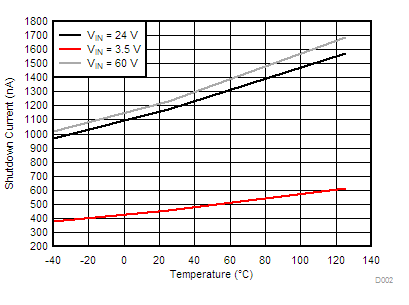

GUID-390958FB-19EB-48E2-801B-C231135AAC2C-low.gifFigure 6-2 Shutdown Quiescent Current
GUID-8C918F74-B22C-4CD8-AA81-D91704C67FBD-low.gifFigure 6-4 Enable Threshold
