11.2 Layout Example

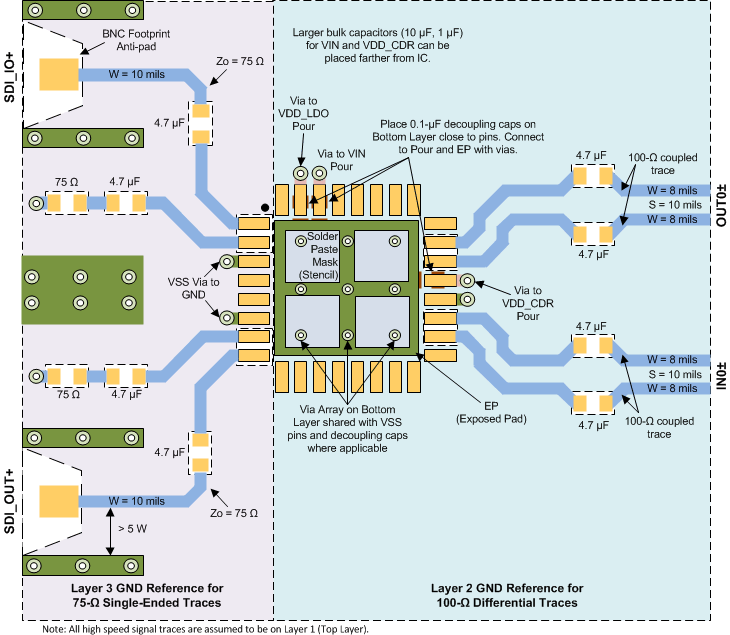

The example shown in Figure 36 demonstrates the LMH0397 layout guidelines highlighted in Layout Guidelines.

LMH0397 layout_example_snls558.gifFigure 36. LMH0397 High-Speed Trace Layout Example
