7.7 Typical Characteristics

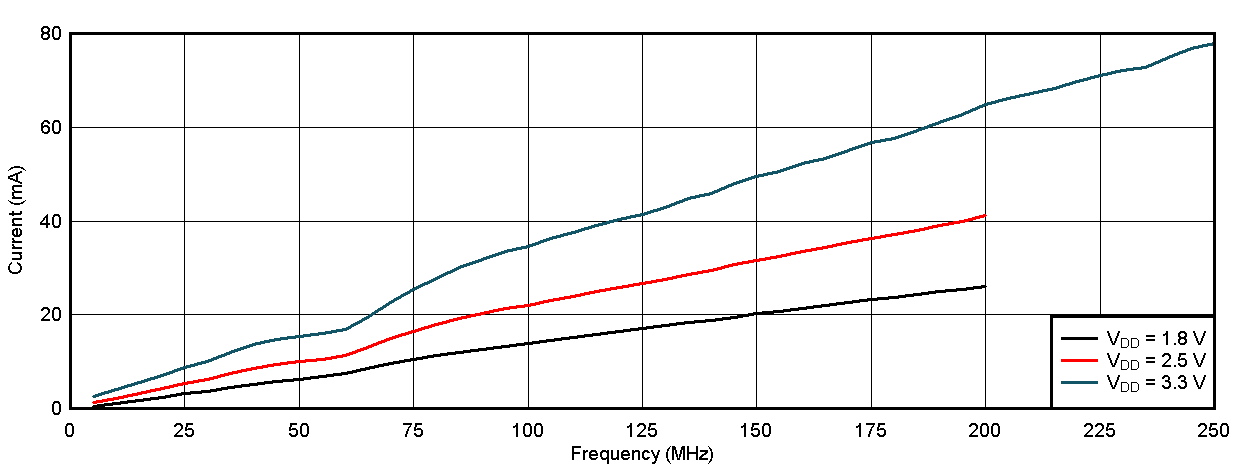

GUID-6172E9EB-25C1-4B57-9B9F-0FC1F45A80F3-low.gifFigure 7-1 Device Power Consumption vs. Clock Frequency (Load 5 pF)
