6.19 Typical Characteristics

LMK61E08 D001_SNAS674.png
PLL Bandwidth = 400 kHz VCO Frequency = 5 GHz
Integer-N PLL Output Divider = 32
Figure 1. Closed-Loop Phase Noise of LVPECL Differential Output at 156.25 MHz
LMK61E08 D003_SNAS674.png
PLL Bandwidth = 400 kHz VCO Frequency = 5 GHz
Integer-N PLL Output Divider = 32
Figure 3. Closed-Loop Phase Noise of HCSL Differential Output at 156.25 MHz
LMK61E08 D005_SNAS674.png
PLL Bandwidth = 400 kHz VCO Frequency = 5.15625 GHz
Fractional-N PLL Output Divider = 32
Figure 5. Closed Loop Phase Noise of LVDS Differential Output at 161.1328125 MHz
LMK61E08 D007_SNAS674.gif
PLL Bandwidth = 400 kHz VCO Frequency = 5 GHz
Integer-N PLL Output Divider = 32
Figure 7. 156.25 ± 78.125-MHz LVPECL Differential Output Spectrum
LMK61E08 D009_SNAS674.gif
PLL Bandwidth = 400 kHz VCO Frequency = 5 GHz
Integer-N PLL Output Divider = 32
Figure 9. 156.25 ± 78.125-MHz HCSL Differential Output Spectrum
LMK61E08 D011_SNAS674.gif
PLL Bandwidth = 400 kHz VCO Frequency = 5.15625 GHz
Fractional-N PLL Output Divider = 32
Figure 11. 161.1328125 ± 80.56640625-MHz LVDS Output Spectrum
LMK61E08 D013_SNAS674.gif
Figure 13. LVPECL Differential Output Swing vs Frequency
LMK61E08 D015_SNAS674.gif
Figure 15. HCSL Differential Output Swing vs Frequency
LMK61E08 D002_SNAS674.png
PLL Bandwidth = 400 kHz VCO Frequency = 5 GHz
Integer-N PLL Output Divider = 32
Figure 2. Closed Loop Phase Noise of LVDS Differential Output at 156.25 MHz
LMK61E08 D004_SNAS674.png
PLL Bandwidth = 400 kHz VCO Frequency = 5.15625 GHz
Fractional-N PLL Output Divider = 32

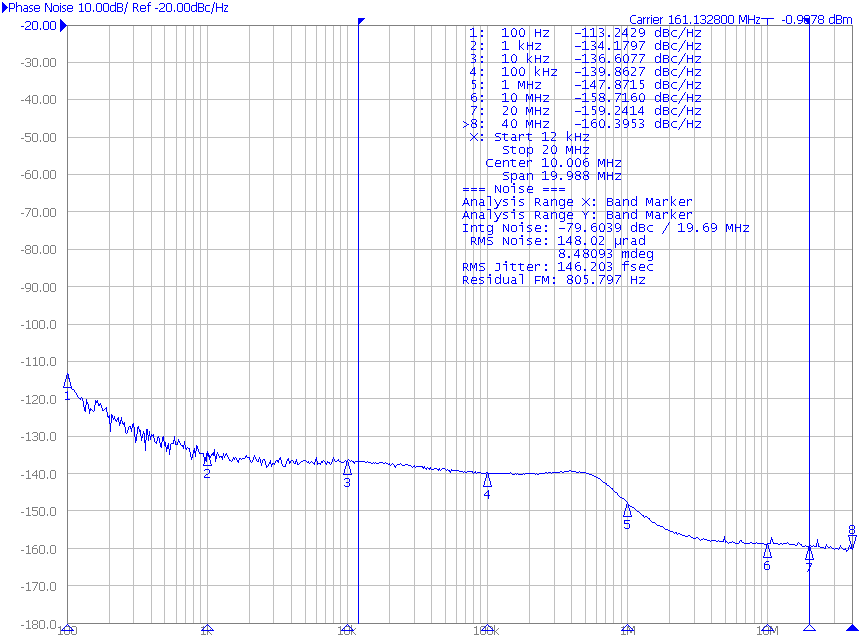

Figure 4. Closed-Loop Phase Noise of LVPECL Differential Output at 161.1328125 MHz
LMK61E08 D006_SNAS674.png
PLL Bandwidth = 400 kHz VCO Frequency = 5.15625 GHz
Fractional-N PLL Output Divider = 32
Figure 6. Closed-Loop Phase Noise of HCSL Differential Output at 161.1328125 MHz
LMK61E08 D008_SNAS674.gif
PLL Bandwidth = 400 kHz VCO Frequency = 5 GHz
Integer-N PLL Output Divider = 32
Figure 8. 156.25 ± 78.125-MHz LVDS Differential Output Spectrum
LMK61E08 D010_SNAS674.gif
PLL Bandwidth = 400 kHz VCO Frequency = 5.15625 GHz
Fractional-N PLL Output Divider = 32
Figure 10. 161.1328125 ± 80.56640625-MHz LVPECL Differential Output Spectrum
LMK61E08 D012_SNAS674.gif
PLL Bandwidth = 400 kHz VCO Frequency = 5.15625 GHz
Fractional-N PLL Output Divider = 32
Figure 12. 161.1328125 ± 80.56640625-MHz HCSL Output Spectrum
LMK61E08 D014_SNAS674.gif
Figure 14. LVDS Differential Output Swing vs Frequency
