7.3.2.1 Pulse-Dependent MODE/SYNC Pin Control

Most systems that require more than a single mode of operation from the device are controlled by digital circuitry such as a microprocessor. These systems can generate dynamic signals easily but have difficulty generating multi-level signals. Pulse-dependent MODE/SYNC pin control is useful with these systems. To initiate pulse-dependent MODE/SYNC pin control, apply a valid sync signal. Table 7-1 shows a summary of the pulse dependent mode selection settings.

Table 7-1 Pulse-Dependent Mode Selection Settings
Mode/Sync Input Mode
> VMODE_H FPWM with spread spectrum factory setting
< VMODE_L Auto mode with spread spectrum factory setting
Synchronization Clock SYNC mode

Figure 7-4 shows the transition between auto mode and FPWM mode while in pulse-dependent MODE/SYNC control. The device transitions to a new mode of operation after the time, tMODE. Figure 7-4 and Figure 7-5 show the details.

GUID-AFAD8A8A-C28D-4FC6-80FE-6DFF506C2C1A-low.gif Figure 7-4 Transition from Auto Mode and FPWM Mode

If MODE/SYNC voltage remains constant longer than tMODE, the device enters either auto mode or FPWM mode with spread spectrum turned on (if factory setting is enabled) and MODE/SYNC continues to operate in pulse-dependent scheme.

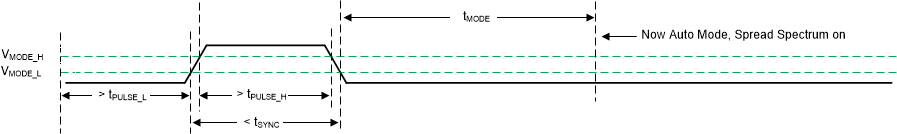

GUID-9ACC6426-D08B-432F-8AE8-F18FFEDE77F4-low.gif Figure 7-5 Transition from SYNC Mode to Auto Mode
GUID-3FFD5B71-C27E-4C9E-9914-42AD975253B5-low.gif Figure 7-6 Transition from SYNC Mode to FPWM Mode
