6.8 Typical Characteristics

Unless otherwise specified the following conditions apply: TA = 25°C and VIN = 12 V

VFB = 1.2 V
Figure 6-1 Non-Switching Input Supply Current
VOUT = 0 V ƒS = 400 kHz See Figure 8-29
Figure 6-3 Short-Circuit Output Current
IOUT = 1 mA See Figure 8-29

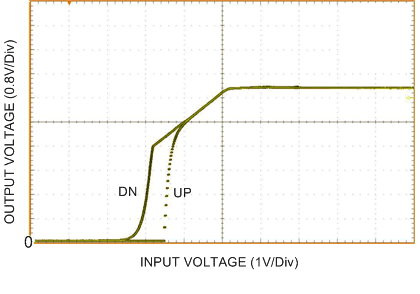

Figure 6-5 UVLO Thresholds
EN = 0 V
Figure 6-2 Shutdown Supply Current

Figure 6-4 Precision Enable Thresholds
IOUT = 0 A VOUT = 5 V See Figure 8-29
ƒSW = 400 kHz
Figure 6-6 IPEAK-MIN
