10 Layout

10.1 Layout Guidelines

Generally, a good high-frequency layout keeps power supply and ground traces away from the inverting input and output pins. Parasitic capacitances on these nodes to ground cause frequency response peaking and possible circuit oscillations (see OA-15 Frequent Faux Pas in Applying Wideband Current Feedback Amplifiers for more information).

TI suggests the following evaluation boards as a guide for high-frequency layout and as an aid in device testing and characterization:

DEVICE PACKAGE EVALUATION BOARD P/N
LMV116 SOT-23-5 CLC730068
LMV118 SOT-23-6 CLC730116

10.2 Layout Example

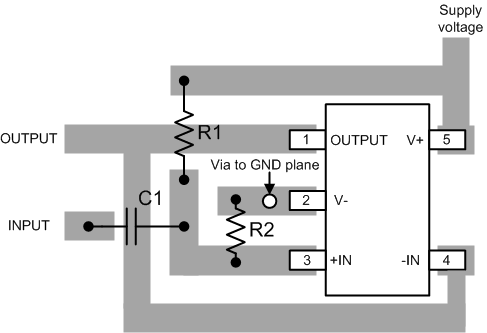

LMV116 LMV118 layout.gif Figure 25. LMV116/LMV118 Layout
