10 Layout

10.1 Layout Guidelines

The V+ pin must be bypassed to ground with a low-ESR capacitor.

The optimum placement is closest to the V+ and ground pins.

Take care to minimize the loop area formed by the bypass capacitor connection between V+ and ground.

The ground pin must be connected to the PCB ground plane at the pin of the device.

The feedback components should be placed as close as possible to the device minimizing strays.

10.2 Layout Example

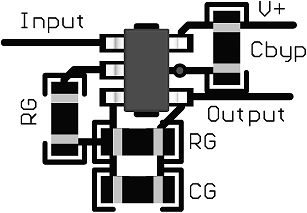

LMV931-N LMV932-N LMV934-N Layout_3D.png Figure 39. SOT-23 Layout Example
